背景介绍

笔者最近在部署自建机房，准备搭建 KubeSphere 集群，KubeSphere 官网的文档似乎有点小问题，所以用这篇文章来记录一下实际的操作，可以放心食用。

准备环境

假设有 4 台机器节点，规划如下：

  • 10.2.2.109：控制节点和 etcd
  • 10.2.2.140：数据节点1
  • 10.2.2.211：数据节点2
  • 10.2.1.9: NFS 服务器，与 KubeSphere 集群隔离 IP 网段

DNS 初始化

1
2
3
4
5
6
7
> cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

10.2.2.109      k3s-master      k3s-master.novalocal
10.2.2.140      k3s-worker-01   k3s-worker-01.novalocal
10.2.2.211      k3s-worker-02   k3s-worker-02.novalocal

NFS 初始化

容器重启后数据会丢失，建议您提前部署好一个 NFS 存储，作为 Kubernetes 的默认存储类。

在所有服务器节点执行。

1
2
3
4
5
6
7
8
9
> yum install -y nfs-common
> yum upgrade -y
> vgcreate containervg /dev/vdb
> lvcreate -n container -l 100%FREE containervg
> mkfs.xfs /dev/mapper/containervg-container
> vi /etc/fstab
/dev/mapper/containervg-container /var/lib/containerd xfs     defaults        0 0
> mount -a
> yum install -y socat conntrack ebtables ipset ipvsadm

在服务器节点 10.2.1.9 执行。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
> parted /dev/sda
Using /dev/sda
Welcome to GNU Parted! Type 'help' to view a list of commands.
(parted) print
Model: DELL PERC H330 Mini (scsi)
Disk /dev/sda: 6000GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags: pmbr_boot

Number  Start   End     Size    File system  Name            Flags
 1      1049kB  3146kB  2097kB                               bios_grub
 2      3146kB  2151MB  2147MB  xfs
 3      2151MB  110GB   107GB                                lvm
 4      110GB   2000GB  1890GB               cinder-volumes  lvm
 5      2000GB  2500GB  500GB                image-volume    lvm
 6      2500GB  3000GB  500GB                backup-volume   lvm
 7      3000GB  3500GB  500GB                nova-volume     lvm

(parted) mkpart k3s-nfs xfs 3500GB 5500GB
(parted) set 8 lvm on
(parted) print
Model: DELL PERC H330 Mini (scsi)
Disk /dev/sda: 6000GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags: pmbr_boot

Number  Start   End     Size    File system  Name            Flags
 1      1049kB  3146kB  2097kB                               bios_grub
 2      3146kB  2151MB  2147MB  xfs
 3      2151MB  110GB   107GB                                lvm
 4      110GB   2000GB  1890GB               cinder-volumes  lvm
 5      2000GB  2500GB  500GB                image-volume    lvm
 6      2500GB  3000GB  500GB                backup-volume   lvm
 7      3000GB  3500GB  500GB                nova-volume     lvm
 8      3500GB  5500GB  2000GB  xfs          k3s-nfs         lvm

(parted) quit
Information: You may need to update /etc/fstab.

> udevadm settle
> cat /proc/partitions
> vgcreate k3snfsvg /dev/sda8
> lvcreate -n k3snfs -l 100%FREE k3snfsvg
> mkfs.xfs /dev/mapper/k3snfsvg-k3snfs
> mkdir -p /nfs/kubesphere
> vim /etc/fstab
/dev/mapper/k3snfsvg-k3snfs /nfs/kubesphere xfs     defaults        0 0

> systemctl daemon-reload
> mount -a
> df -h
> vim /etc/exports
/nfs/kubesphere   10.0.0.0/8(rw,sync,no_root_squash)

> exportfs -rv
> showmount -e localhost
> cd /nfs/kubesphere
> mkdir {rootfs,data,log,config}

Docker 初始化

如果 Kubernetes 使用 Containered 作为容器运行时，可以跳过此步骤。

在所有服务器节点执行。

1
2
3
4
5
6
7
8
9
10
11
12
> yum install -y yum-utils
> yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
> yum install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin
> systemctl enable docker.service
# 如果不支持 VPN，建议设置镜像源为 m.daocloud.io
> vim /etc/docker/daemon.json
{
    "registry-mirrors": ["https://m.daocloud.io"]
}
> systemctl daemon-reload
> systemctl start docker.service
> systemctl status -l docker.service

部署流程

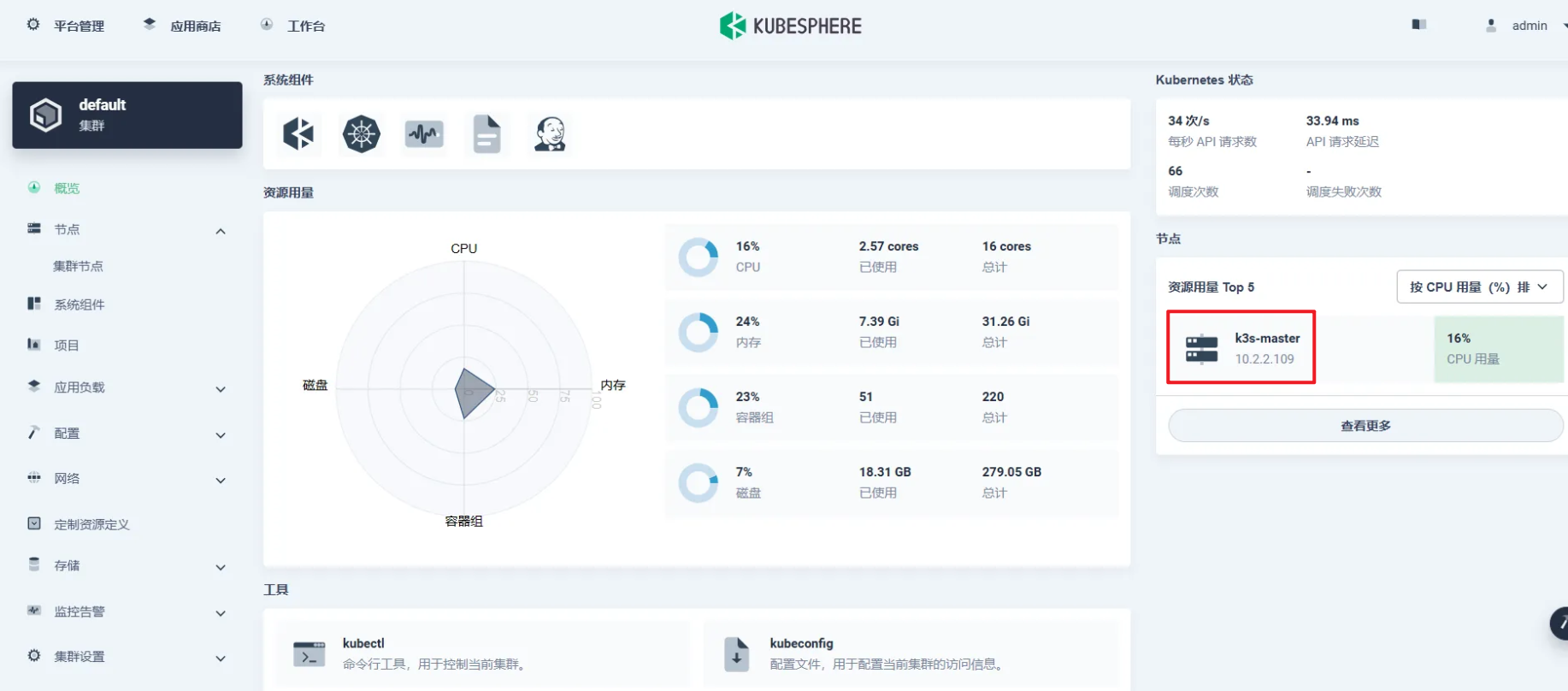

Master 节点

在服务器节点 10.2.2.109 执行。

1
2
3
4
5
6
7
8
9
> export KKZONE=cn
> mkdir k3s
> cd k3s
> curl -sfL https://get-kk.kubesphere.io | sh -
> sudo chmod +x kk
> ./kk version --show-supported-k8s
> ./kk create config --with-kubernetes v1.24.17 --with-kubesphere v3.4.1
> cp -p config-sample.yaml config-init.yaml
> vim config-init.yaml

执行 vim nfs-client.yaml 创建 NFS 配置文件，内容如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
apiVersion: kubekey.kubesphere.io/v1alpha2
kind: Cluster
metadata:
  name: puyi
spec:
  hosts:
  - {name: k3s-master, address: 10.2.2.109, internalAddress: 10.2.2.109, user: root, password: "k3s-master@123"}
  roleGroups:
    etcd:
    - k3s-master
    control-plane:
    - k3s-master
    worker:
    - k3s-master
  controlPlaneEndpoint:
    domain: lb.kubesphere.local
    address: ""
    port: 6443
  kubernetes:
    version: v1.24.17
    clusterName: cluster.local
    autoRenewCerts: true
    containerManager: containerd
    maxPods: 220
  etcd:
    type: kubekey
  network:
    plugin: calico
    kubePodsCIDR: 10.233.64.0/18
    kubeServiceCIDR: 10.233.0.0/18
    multusCNI:
      enabled: false
  registry:
    privateRegistry: ""
    namespaceOverride: ""
    registryMirrors: []
    insecureRegistries: []
# 这个依赖好像失效了，先注释掉
#  addons:
#  - name: nfs-rootfs
#    namespace: kube-system
#    sources:
#      chart:
#        name: nfs-rootfs-provisioner
#        repo: https://charts.kubesphere.io/main
#        valuesFile: /root/k3s/nfs-client.yaml
---
apiVersion: installer.kubesphere.io/v1alpha1
kind: ClusterConfiguration
metadata:
  name: ks-installer
  namespace: kubesphere-system
  labels:
    version: v3.4.1
spec:
  persistence:
    storageClass: ""
  authentication:
    jwtSecret: ""
  local_registry: ""
  etcd:
    monitoring: false
    endpointIps: localhost
    port: 2379
    tlsEnable: true
  common:
    core:
      console:
        enableMultiLogin: true
        port: 30880
        type: NodePort
    redis:
      enabled: false
      enableHA: false
      volumeSize: 2Gi
    openldap:
      enabled: false
      volumeSize: 2Gi
    minio:
      volumeSize: 20Gi
    monitoring:
      endpoint: http://prometheus-operated.kubesphere-monitoring-system.svc:9090
      GPUMonitoring:
        enabled: false
    gpu:
      kinds:
      - resourceName: "nvidia.com/gpu"
        resourceType: "GPU"
        default: true
    es:
      enabled: false
      logMaxAge: 7
      auditingMaxAge: 2
      eventMaxAge: 1
      istioMaxAge: 4
      elkPrefix: logstash
      basicAuth:
        enabled: false
        username: ""
        password: ""
      externalElasticsearchHost: ""
      externalElasticsearchPort: ""
    opensearch:
      enabled: true
      logMaxAge: 7
      auditingMaxAge: 2
      eventMaxAge: 1
      istioMaxAge: 4
      opensearchPrefix: whizard
      basicAuth:
        enabled: true
        username: "admin"
        password: "admin"
      externalOpensearchHost: ""
      externalOpensearchPort: ""
      dashboard:
        enabled: false
  alerting:
    enabled: true
  auditing:
    enabled: false
  devops:
    enabled: true
    jenkinsCpuReq: 1
    jenkinsCpuLim: 1
    jenkinsMemoryReq: 4Gi
    jenkinsMemoryLim: 4Gi
    jenkinsVolumeSize: 30Gi
  events:
    enabled: true
    ruler:
      enabled: true
      replicas: 2
  logging:
    enabled: true
    logsidecar:
      enabled: true
      replicas: 2
  metrics_server:
    enabled: true
  monitoring:
    storageClass: ""
    node_exporter:
      port: 9100
    gpu:
      nvidia_dcgm_exporter:
        enabled: false
  multicluster:
    clusterRole: none
  network:
    networkpolicy:
      enabled: true
    ippool:
      type: calico
    topology:
      type: weave-scope
  openpitrix:
    store:
      enabled: true
  servicemesh:
    enabled: false
    istio:
      components:
        ingressGateways:
        - name: istio-ingressgateway
          enabled: false
        cni:
          enabled: false
  edgeruntime:
    enabled: false
    kubeedge:
      enabled: false
      cloudCore:
        cloudHub:
          advertiseAddress:
            - ""
        service:
          cloudhubNodePort: "30000"
          cloudhubQuicNodePort: "30001"
          cloudhubHttpsNodePort: "30002"
          cloudstreamNodePort: "30003"
          tunnelNodePort: "30004"
      iptables-manager:
        enabled: true
        mode: "external"
  gatekeeper:
    enabled: false
  terminal:
    timeout: 600
  zone: ""

修改后按 ESC 输入 :wq 保存退出，接着使用 KubeKey 开始安装。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
> egrep -v '#|^$' config-init.yaml
> ./kk create cluster -f config-init.yaml


 _   __      _          _   __
| | / /     | |        | | / /
| |/ / _   _| |__   ___| |/ /  ___ _   _
|    \| | | | '_ \ / _ \    \ / _ \ | | |
| |\  \ |_| | |_) |  __/ |\  \  __/ |_| |
\_| \_/\__,_|_.__/ \___\_| \_/\___|\__, |
                                    __/ |
                                   |___/

13:39:30 CST [GreetingsModule] Greetings
13:39:30 CST message: [k3s-master]
Greetings, KubeKey!
13:39:30 CST success: [k3s-master]
13:39:30 CST [NodePreCheckModule] A pre-check on nodes
13:39:30 CST success: [k3s-master]
13:39:30 CST [ConfirmModule] Display confirmation form
+------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+
| name       | sudo | curl | openssl | ebtables | socat | ipset | ipvsadm | conntrack | chrony | docker | containerd | nfs client | ceph client | glusterfs client | time         |
+------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+
| k3s-master | y    | y    | y       | y        | y     | y     | y       | y         | y      |        | v1.7.13    | y          |             |                  | CST 13:39:30 |
+------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+

This is a simple check of your environment.
Before installation, ensure that your machines meet all requirements specified at
https://github.com/kubesphere/kubekey#requirements-and-recommendations

Install k8s with specify version:  v1.24.17

Continue this installation? [yes/no]: yes
13:39:37 CST success: [LocalHost]
13:39:37 CST [NodeBinariesModule] Download installation binaries
13:39:37 CST message: [localhost]
downloading amd64 kubeadm v1.24.17 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 43.4M  100 43.4M    0     0   900k      0  0:00:49  0:00:49 --:--:-- 1076k
13:40:27 CST message: [localhost]
downloading amd64 kubelet v1.24.17 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  112M  100  112M    0     0   971k      0  0:01:58  0:01:58 --:--:-- 1063k
13:42:26 CST message: [localhost]
downloading amd64 kubectl v1.24.17 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 44.5M  100 44.5M    0     0   907k      0  0:00:50  0:00:50 --:--:-- 1083k
13:43:16 CST message: [localhost]
downloading amd64 helm v3.14.3 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 48.3M  100 48.3M    0     0   914k      0  0:00:54  0:00:54 --:--:-- 1076k
13:44:11 CST message: [localhost]
downloading amd64 kubecni v1.2.0 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 38.6M  100 38.6M    0     0   900k      0  0:00:43  0:00:43 --:--:-- 1173k
13:44:55 CST message: [localhost]
downloading amd64 crictl v1.29.0 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 23.2M  100 23.2M    0     0   819k      0  0:00:29  0:00:29 --:--:-- 1080k
13:45:24 CST message: [localhost]
downloading amd64 etcd v3.5.13 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 19.1M  100 19.1M    0     0   778k      0  0:00:25  0:00:25 --:--:-- 1036k
13:45:49 CST message: [localhost]
downloading amd64 containerd 1.7.13 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 45.7M  100 45.7M    0     0   908k      0  0:00:51  0:00:51 --:--:-- 1079k
13:46:41 CST message: [localhost]
downloading amd64 runc v1.1.12 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 10.2M  100 10.2M    0     0   658k      0  0:00:15  0:00:15 --:--:-- 1079k
13:46:57 CST message: [localhost]
downloading amd64 calicoctl v3.27.4 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 61.3M  100 61.3M    0     0   939k      0  0:01:06  0:01:06 --:--:-- 1101k
13:48:04 CST success: [LocalHost]
13:48:04 CST [ConfigureOSModule] Get OS release
13:48:04 CST success: [k3s-master]
13:48:04 CST [ConfigureOSModule] Prepare to init OS
13:48:05 CST success: [k3s-master]
13:48:05 CST [ConfigureOSModule] Generate init os script
13:48:05 CST success: [k3s-master]
13:48:05 CST [ConfigureOSModule] Exec init os script
13:48:07 CST stdout: [k3s-master]
setenforce: SELinux is disabled
Disabled
net.ipv4.tcp_syncookies = 1
net.ipv4.conf.all.accept_source_route = 0
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.all.rp_filter = 0
net.ipv4.icmp_echo_ignore_broadcasts = 1
net.ipv4.icmp_ignore_bogus_error_responses = 1
kernel.sched_child_runs_first = 1
kernel.sched_latency_ns = 80000000
kernel.sched_migration_cost_ns = 125000
kernel.sched_min_granularity_ns = 40000000
kernel.sched_wakeup_granularity_ns = 3750000
kernel.sched_nr_migrate = 128
kernel.pid_max = 65535
kernel.msgmax = 2097152
kernel.msgmnb = 4194304
kernel.shmmni = 32768
kernel.sem = 2000 256000 256 1024
vm.overcommit_memory = 0
vm.max_map_count = 262144
vm.swappiness = 0
vm.dirty_background_ratio = 40
vm.dirty_ratio = 50
fs.aio-max-nr = 262144
fs.inotify.max_user_instances = 524288
fs.inotify.max_user_watches = 524288
net.core.rps_sock_flow_entries = 65536
net.core.dev_weight = 1024
net.core.busy_poll = 200
net.core.busy_read = 200
net.ipv4.tcp_moderate_rcvbuf = 1
net.core.somaxconn = 32768
net.core.netdev_max_backlog = 65535
net.core.netdev_budget = 4800
net.ipv4.neigh.default.gc_thresh1 = 512
net.ipv4.neigh.default.gc_thresh2 = 2048
net.ipv4.neigh.default.gc_thresh3 = 4096
net.ipv4.neigh.default.unres_qlen_bytes = 262144
net.netfilter.nf_conntrack_max = 1048576
net.netfilter.nf_conntrack_tcp_timeout_established = 300
sysctl: setting key "net.netfilter.nf_conntrack_buckets": No such file or directory
net.ipv4.ipfrag_high_thresh = 16777216
net.ipv4.ipfrag_low_thresh = 12582912
net.ipv4.tcp_rmem = 8388608 16777216 67108864
net.ipv4.tcp_wmem = 8388608 16777216 67108864
net.ipv4.udp_rmem_min = 131072
net.ipv4.udp_wmem_min = 131072
net.core.rmem_default = 33554432
net.core.wmem_default = 33554432
net.core.rmem_max = 33554432
net.core.wmem_max = 33554432
net.ipv4.tcp_fin_timeout = 5
net.ipv4.tcp_keepalive_time = 600
net.ipv4.ip_local_port_range = 10000 65000
net.ipv4.tcp_max_syn_backlog = 1048576
net.ipv4.tcp_max_tw_buckets = 1048576
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-arptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_local_reserved_ports = 30000-32767
net.ipv4.tcp_retries2 = 15
net.ipv4.tcp_max_orphans = 65535
net.ipv4.tcp_keepalive_intvl = 30
net.ipv4.tcp_keepalive_probes = 10
net.ipv4.conf.default.rp_filter = 0
net.ipv4.conf.all.arp_accept = 1
net.ipv4.conf.default.arp_accept = 1
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.default.arp_ignore = 1
fs.pipe-max-size = 4194304
kernel.watchdog_thresh = 5
kernel.hung_task_timeout_secs = 5
net.ipv6.conf.all.disable_ipv6 = 0
net.ipv6.conf.default.disable_ipv6 = 0
net.ipv6.conf.lo.disable_ipv6 = 0
net.ipv6.conf.all.forwarding = 1
13:48:07 CST success: [k3s-master]
13:48:07 CST [ConfigureOSModule] configure the ntp server for each node
13:48:07 CST skipped: [k3s-master]
13:48:07 CST [KubernetesStatusModule] Get kubernetes cluster status
13:48:08 CST success: [k3s-master]
13:48:08 CST [InstallContainerModule] Sync containerd binaries
13:48:08 CST skipped: [k3s-master]
13:48:08 CST [InstallContainerModule] Generate containerd service
13:48:08 CST skipped: [k3s-master]
13:48:08 CST [InstallContainerModule] Generate containerd config
13:48:08 CST skipped: [k3s-master]
13:48:08 CST [InstallContainerModule] Enable containerd
13:48:08 CST skipped: [k3s-master]
13:48:08 CST [InstallContainerModule] Sync crictl binaries
13:48:08 CST skipped: [k3s-master]
13:48:08 CST [InstallContainerModule] Generate crictl config
13:48:08 CST success: [k3s-master]
13:48:08 CST [PullModule] Start to pull images on all nodes
13:48:08 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/pause:3.7
13:48:08 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-apiserver:v1.24.17
13:48:08 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-controller-manager:v1.24.17
13:48:08 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-scheduler:v1.24.17
13:48:08 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-proxy:v1.24.17
13:48:09 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/coredns:1.8.6
13:48:09 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/k8s-dns-node-cache:1.22.20
13:48:09 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-controllers:v3.27.4
13:48:09 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/cni:v3.27.4
13:48:09 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/node:v3.27.4
13:48:09 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/pod2daemon-flexvol:v3.27.4
13:48:09 CST success: [k3s-master]
13:48:09 CST [ETCDPreCheckModule] Get etcd status
13:48:09 CST success: [k3s-master]
13:48:09 CST [CertsModule] Fetch etcd certs
13:48:09 CST success: [k3s-master]
13:48:09 CST [CertsModule] Generate etcd Certs
[certs] Generating "ca" certificate and key
[certs] admin-k3s-master serving cert is signed for DNS names [etcd etcd.kube-system etcd.kube-system.svc etcd.kube-system.svc.cluster.local k3s-master lb.kubesphere.local localhost] and IPs [127.0.0.1 ::1 10.2.2.109]
[certs] member-k3s-master serving cert is signed for DNS names [etcd etcd.kube-system etcd.kube-system.svc etcd.kube-system.svc.cluster.local k3s-master lb.kubesphere.local localhost] and IPs [127.0.0.1 ::1 10.2.2.109]
[certs] node-k3s-master serving cert is signed for DNS names [etcd etcd.kube-system etcd.kube-system.svc etcd.kube-system.svc.cluster.local k3s-master lb.kubesphere.local localhost] and IPs [127.0.0.1 ::1 10.2.2.109]
13:48:11 CST success: [LocalHost]
13:48:11 CST [CertsModule] Synchronize certs file
13:48:12 CST success: [k3s-master]
13:48:12 CST [CertsModule] Synchronize certs file to master
13:48:12 CST skipped: [k3s-master]
13:48:12 CST [InstallETCDBinaryModule] Install etcd using binary
13:48:14 CST success: [k3s-master]
13:48:14 CST [InstallETCDBinaryModule] Generate etcd service
13:48:14 CST success: [k3s-master]
13:48:14 CST [InstallETCDBinaryModule] Generate access address
13:48:14 CST success: [k3s-master]
13:48:14 CST [ETCDConfigureModule] Health check on exist etcd
13:48:14 CST skipped: [k3s-master]
13:48:14 CST [ETCDConfigureModule] Generate etcd.env config on new etcd
13:48:14 CST success: [k3s-master]
13:48:14 CST [ETCDConfigureModule] Refresh etcd.env config on all etcd
13:48:14 CST success: [k3s-master]
13:48:14 CST [ETCDConfigureModule] Restart etcd
13:48:19 CST success: [k3s-master]
13:48:19 CST [ETCDConfigureModule] Health check on all etcd
13:48:19 CST success: [k3s-master]
13:48:19 CST [ETCDConfigureModule] Refresh etcd.env config to exist mode on all etcd
13:48:19 CST success: [k3s-master]
13:48:19 CST [ETCDConfigureModule] Health check on all etcd
13:48:20 CST success: [k3s-master]
13:48:20 CST [ETCDBackupModule] Backup etcd data regularly
13:48:20 CST success: [k3s-master]
13:48:20 CST [ETCDBackupModule] Generate backup ETCD service
13:48:20 CST success: [k3s-master]
13:48:20 CST [ETCDBackupModule] Generate backup ETCD timer
13:48:20 CST success: [k3s-master]
13:48:20 CST [ETCDBackupModule] Enable backup etcd service
13:48:20 CST success: [k3s-master]
13:48:20 CST [InstallKubeBinariesModule] Synchronize kubernetes binaries
13:48:27 CST success: [k3s-master]
13:48:27 CST [InstallKubeBinariesModule] Change kubelet mode
13:48:27 CST success: [k3s-master]
13:48:27 CST [InstallKubeBinariesModule] Generate kubelet service
13:48:27 CST success: [k3s-master]
13:48:27 CST [InstallKubeBinariesModule] Enable kubelet service
13:48:28 CST success: [k3s-master]
13:48:28 CST [InstallKubeBinariesModule] Generate kubelet env
13:48:28 CST success: [k3s-master]
13:48:28 CST [InitKubernetesModule] Generate kubeadm config
13:48:28 CST success: [k3s-master]
13:48:28 CST [InitKubernetesModule] Generate audit policy
13:48:28 CST skipped: [k3s-master]
13:48:28 CST [InitKubernetesModule] Generate audit webhook
13:48:28 CST skipped: [k3s-master]
13:48:28 CST [InitKubernetesModule] Init cluster using kubeadm
13:48:51 CST stdout: [k3s-master]
W1009 13:48:28.956892   11930 utils.go:69] The recommended value for "clusterDNS" in "KubeletConfiguration" is: [10.233.0.10]; the provided value is: [169.254.25.10]
[init] Using Kubernetes version: v1.24.17
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [k3s-master k3s-master.cluster.local kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local lb.kubesphere.local localhost] and IPs [10.233.0.1 10.2.2.109 127.0.0.1]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] External etcd mode: Skipping etcd/ca certificate authority generation
[certs] External etcd mode: Skipping etcd/server certificate generation
[certs] External etcd mode: Skipping etcd/peer certificate generation
[certs] External etcd mode: Skipping etcd/healthcheck-client certificate generation
[certs] External etcd mode: Skipping apiserver-etcd-client certificate generation
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 17.503847 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node k3s-master as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers]
[mark-control-plane] Marking the node k3s-master as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule node-role.kubernetes.io/control-plane:NoSchedule]
[bootstrap-token] Using token: kvwh7d.tiuyjnwfbc8bqyt7
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

You can now join any number of control-plane nodes by copying certificate authorities
and service account keys on each node and then running the following as root:

  kubeadm join lb.kubesphere.local:6443 --token kvwh7d.tiuyjnwfbc8bqyt7 \
        --discovery-token-ca-cert-hash sha256:1f5b22071a80e7c647e441c29d0569b391de0dd15d2065c4283ee4c744a1327c \
        --control-plane

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join lb.kubesphere.local:6443 --token kvwh7d.tiuyjnwfbc8bqyt7 \
        --discovery-token-ca-cert-hash sha256:1f5b22071a80e7c647e441c29d0569b391de0dd15d2065c4283ee4c744a1327c
13:48:51 CST success: [k3s-master]
13:48:51 CST [InitKubernetesModule] Copy admin.conf to ~/.kube/config
13:48:51 CST success: [k3s-master]
13:48:51 CST [InitKubernetesModule] Remove master taint
13:48:53 CST stdout: [k3s-master]
node/k3s-master untainted
13:48:53 CST stdout: [k3s-master]
node/k3s-master untainted
13:48:53 CST success: [k3s-master]
13:48:53 CST [ClusterDNSModule] Generate coredns configmap
13:48:53 CST success: [k3s-master]
13:48:53 CST [ClusterDNSModule] Apply coredns configmap
13:48:54 CST stdout: [k3s-master]
Warning: resource configmaps/coredns is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
configmap/coredns configured
13:48:54 CST success: [k3s-master]
13:48:54 CST [ClusterDNSModule] Generate coredns manifests
13:48:54 CST success: [k3s-master]
13:48:54 CST [ClusterDNSModule] Deploy coredns
13:48:54 CST stdout: [k3s-master]
service "kube-dns" deleted
13:48:55 CST stdout: [k3s-master]
Warning: resource clusterroles/system:coredns is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
clusterrole.rbac.authorization.k8s.io/system:coredns configured
service/coredns created
Warning: resource deployments/coredns is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
deployment.apps/coredns configured
13:48:55 CST stdout: [k3s-master]
deployment.apps/coredns restarted
13:48:55 CST success: [k3s-master]
13:48:55 CST [ClusterDNSModule] Generate nodelocaldns configmap
13:48:55 CST success: [k3s-master]
13:48:55 CST [ClusterDNSModule] Apply nodelocaldns configmap
13:48:56 CST stdout: [k3s-master]
configmap/nodelocaldns created
13:48:56 CST success: [k3s-master]
13:48:56 CST [ClusterDNSModule] Generate nodelocaldns
13:48:56 CST success: [k3s-master]
13:48:56 CST [ClusterDNSModule] Deploy nodelocaldns
13:48:56 CST stdout: [k3s-master]
serviceaccount/nodelocaldns created
daemonset.apps/nodelocaldns created
13:48:56 CST success: [k3s-master]
13:48:56 CST [KubernetesStatusModule] Get kubernetes cluster status
13:48:56 CST stdout: [k3s-master]
v1.24.17
13:48:56 CST stdout: [k3s-master]
k3s-master   v1.24.17   [map[address:10.2.2.109 type:InternalIP] map[address:k3s-master type:Hostname]]
13:48:57 CST stdout: [k3s-master]
W1009 13:48:57.018811   13416 utils.go:69] The recommended value for "clusterDNS" in "KubeletConfiguration" is: [10.233.0.10]; the provided value is: [169.254.25.10]
[upload-certs] Storing the certificates in Secret "kubeadm-certs" in the "kube-system" Namespace
[upload-certs] Using certificate key:
64625b6043ef538848338b08d634ec2fdb933288b8b816ce928214b0398da1fa
13:48:57 CST stdout: [k3s-master]
secret/kubeadm-certs patched
13:48:57 CST stdout: [k3s-master]
secret/kubeadm-certs patched
13:48:57 CST stdout: [k3s-master]
secret/kubeadm-certs patched
13:48:57 CST stdout: [k3s-master]
gda258.973k95vadvzwx5y1
13:48:57 CST success: [k3s-master]
13:48:57 CST [JoinNodesModule] Generate kubeadm config
13:48:57 CST skipped: [k3s-master]
13:48:57 CST [JoinNodesModule] Generate audit policy
13:48:57 CST skipped: [k3s-master]
13:48:57 CST [JoinNodesModule] Generate audit webhook
13:48:57 CST skipped: [k3s-master]
13:48:57 CST [JoinNodesModule] Join control-plane node
13:48:57 CST skipped: [k3s-master]
13:48:57 CST [JoinNodesModule] Join worker node
13:48:57 CST skipped: [k3s-master]
13:48:57 CST [JoinNodesModule] Copy admin.conf to ~/.kube/config
13:48:57 CST skipped: [k3s-master]
13:48:57 CST [JoinNodesModule] Remove master taint
13:48:57 CST skipped: [k3s-master]
13:48:57 CST [JoinNodesModule] Add worker label to all nodes
13:48:57 CST stdout: [k3s-master]
node/k3s-master labeled
13:48:57 CST success: [k3s-master]
13:48:57 CST [DeployNetworkPluginModule] Generate calico
13:48:58 CST success: [k3s-master]
13:48:58 CST [DeployNetworkPluginModule] Deploy calico
13:49:00 CST stdout: [k3s-master]
poddisruptionbudget.policy/calico-kube-controllers created
serviceaccount/calico-kube-controllers created
serviceaccount/calico-node created
serviceaccount/calico-cni-plugin created
configmap/calico-config created
customresourcedefinition.apiextensions.k8s.io/bgpconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgpfilters.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgppeers.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/blockaffinities.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/caliconodestatuses.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/clusterinformations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/felixconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworksets.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/hostendpoints.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamblocks.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamconfigs.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamhandles.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ippools.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipreservations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/kubecontrollersconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networksets.crd.projectcalico.org created
clusterrole.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrole.rbac.authorization.k8s.io/calico-node created
clusterrole.rbac.authorization.k8s.io/calico-cni-plugin created
clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrolebinding.rbac.authorization.k8s.io/calico-node created
clusterrolebinding.rbac.authorization.k8s.io/calico-cni-plugin created
daemonset.apps/calico-node created
deployment.apps/calico-kube-controllers created
13:49:00 CST success: [k3s-master]
13:49:00 CST [ConfigureKubernetesModule] Configure kubernetes
13:49:00 CST success: [k3s-master]
13:49:00 CST [ChownModule] Chown user $HOME/.kube dir
13:49:00 CST success: [k3s-master]
13:49:00 CST [AutoRenewCertsModule] Generate k8s certs renew script
13:49:00 CST success: [k3s-master]
13:49:00 CST [AutoRenewCertsModule] Generate k8s certs renew service
13:49:00 CST success: [k3s-master]
13:49:00 CST [AutoRenewCertsModule] Generate k8s certs renew timer
13:49:00 CST success: [k3s-master]
13:49:00 CST [AutoRenewCertsModule] Enable k8s certs renew service
13:49:01 CST success: [k3s-master]
13:49:01 CST [SaveKubeConfigModule] Save kube config as a configmap
13:49:01 CST success: [LocalHost]
13:49:01 CST [AddonsModule] Install addons
13:49:01 CST message: [LocalHost]
[0/0] enabled addons
13:49:01 CST success: [LocalHost]
13:49:01 CST [DeployStorageClassModule] Generate OpenEBS manifest
13:49:01 CST success: [k3s-master]
13:49:01 CST [DeployStorageClassModule] Deploy OpenEBS as cluster default StorageClass
13:49:02 CST success: [k3s-master]
13:49:02 CST [DeployKubeSphereModule] Generate KubeSphere ks-installer crd manifests
13:49:02 CST success: [k3s-master]
13:49:02 CST [DeployKubeSphereModule] Apply ks-installer
13:49:03 CST stdout: [k3s-master]
namespace/kubesphere-system created
serviceaccount/ks-installer created
customresourcedefinition.apiextensions.k8s.io/clusterconfigurations.installer.kubesphere.io created
clusterrole.rbac.authorization.k8s.io/ks-installer created
clusterrolebinding.rbac.authorization.k8s.io/ks-installer created
deployment.apps/ks-installer created
13:49:03 CST success: [k3s-master]
13:49:03 CST [DeployKubeSphereModule] Add config to ks-installer manifests
13:49:03 CST success: [k3s-master]
13:49:03 CST [DeployKubeSphereModule] Create the kubesphere namespace
13:49:03 CST success: [k3s-master]
13:49:03 CST [DeployKubeSphereModule] Setup ks-installer config
13:49:03 CST stdout: [k3s-master]
secret/kube-etcd-client-certs created
13:49:03 CST success: [k3s-master]
13:49:03 CST [DeployKubeSphereModule] Apply ks-installer
13:49:06 CST stdout: [k3s-master]
namespace/kubesphere-system unchanged
serviceaccount/ks-installer unchanged
customresourcedefinition.apiextensions.k8s.io/clusterconfigurations.installer.kubesphere.io unchanged
clusterrole.rbac.authorization.k8s.io/ks-installer unchanged
clusterrolebinding.rbac.authorization.k8s.io/ks-installer unchanged
deployment.apps/ks-installer unchanged
clusterconfiguration.installer.kubesphere.io/ks-installer created
13:49:06 CST success: [k3s-master]
#####################################################
###              Welcome to KubeSphere!           ###
#####################################################

Console: http://10.2.2.109:30880
Account: admin
Password: P@88w0rd
NOTES：
  1. After you log into the console, please check the
     monitoring status of service components in
     "Cluster Management". If any service is not
     ready, please wait patiently until all components
     are up and running.
  2. Please change the default password after login.

#####################################################
https://kubesphere.io             2024-10-09 14:08:38
#####################################################
14:08:40 CST success: [k3s-master]
14:08:40 CST Pipeline[CreateClusterPipeline] execute successfully
Installation is complete.

安装完成，通过以下命令检查安装是否正常。

1
2
3
4
5
> kubectl logs -n kubesphere-system $(kubectl get pod -n kubesphere-system -l 'app in (ks-install, ks-installer)' -o jsonpath='{.items[0].metadata.name}') -f
> export KUBECONFIG=/etc/kubernetes/admin.conf
> kubectl get event -A -w
> kubectl get pod -A -w
> kubectl get sc

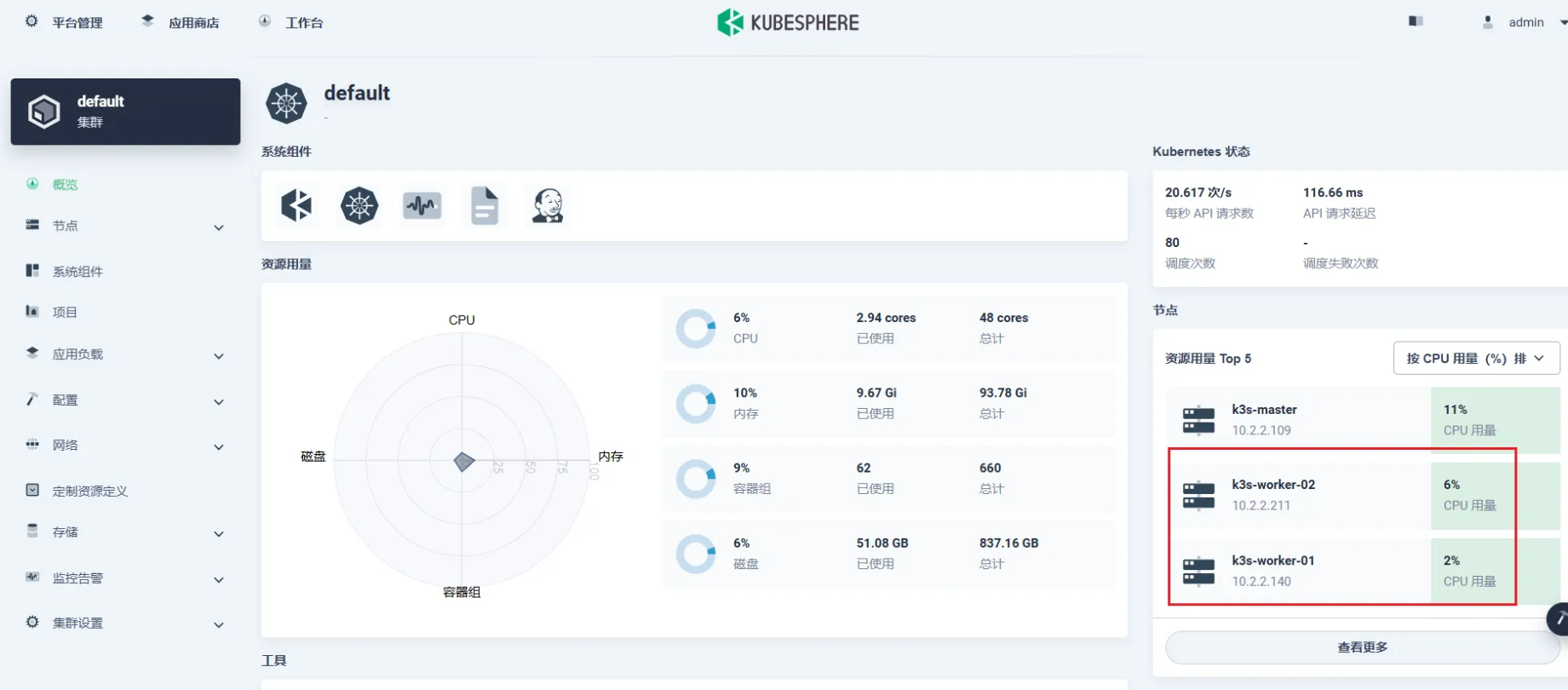

访问 KubeSphere 控制台，界面如下。

Worker 节点

在服务器节点 10.2.2.140 和 10.2.2.211 执行。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
> export KKZONE=cn
> rsync -aAvz -e 'ssh -p 22' 10.2.2.109:/root/k3s /root/
> cd k3s
> vim config-init.yaml
# 修改关键内容
spec:
  hosts:
  - {name: k3s-master, address: 10.2.2.109, internalAddress: 10.2.2.109, user: root, password: "k3s-master@123"}
  - {name: k3s-worker-01, address: 10.2.2.140, internalAddress: 10.2.2.140, user: root, password: "k3s-worker01@123"}
  - {name: k3s-worker-02, address: 10.2.2.211, internalAddress: 10.2.2.211, user: root, password: "k3s-worker02@123"}
  roleGroups:
    etcd:
    - k3s-master
    control-plane:
    - k3s-master
    worker:
    - k3s-master
    - k3s-worker-01
    - k3s-worker-02

使用 KubeKey 安装。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
> ./kk add nodes -f config-init.yaml

_   __      _          _   __
| | / /     | |        | | / /
| |/ / _   _| |__   ___| |/ /  ___ _   _
|    \| | | | '_ \ / _ \    \ / _ \ | | |
| |\  \ |_| | |_) |  __/ |\  \  __/ |_| |
\_| \_/\__,_|_.__/ \___\_| \_/\___|\__, |
                                    __/ |
                                   |___/

15:26:05 CST [GreetingsModule] Greetings
15:26:05 CST message: [k3s-worker-02]
Greetings, KubeKey!
15:26:06 CST message: [k3s-master]
Greetings, KubeKey!
15:26:06 CST message: [k3s-worker-01]
Greetings, KubeKey!
15:26:06 CST success: [k3s-worker-02]
15:26:06 CST success: [k3s-master]
15:26:06 CST success: [k3s-worker-01]
15:26:06 CST [NodePreCheckModule] A pre-check on nodes
15:26:06 CST success: [k3s-worker-01]
15:26:06 CST success: [k3s-worker-02]
15:26:06 CST success: [k3s-master]
15:26:06 CST [ConfirmModule] Display confirmation form
+---------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+
| name          | sudo | curl | openssl | ebtables | socat | ipset | ipvsadm | conntrack | chrony | docker | containerd | nfs client | ceph client | glusterfs client | time         |
+---------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+
| k3s-master    | y    | y    | y       | y        | y     | y     | y       | y         | y      |        | v1.7.13    | y          |             |                  | CST 15:26:06 |
| k3s-worker-01 | y    | y    | y       | y        | y     | y     | y       | y         | y      |        | v1.7.13    | y          |             |                  | CST 15:26:06 |
| k3s-worker-02 | y    | y    | y       | y        | y     | y     | y       | y         | y      |        | v1.7.13    | y          |             |                  | CST 15:26:06 |
+---------------+------+------+---------+----------+-------+-------+---------+-----------+--------+--------+------------+------------+-------------+------------------+--------------+

This is a simple check of your environment.
Before installation, ensure that your machines meet all requirements specified at
https://github.com/kubesphere/kubekey#requirements-and-recommendations

Install k8s with specify version:  v1.24.17

Continue this installation? [yes/no]: yes
15:26:08 CST success: [LocalHost]
15:26:08 CST [NodeBinariesModule] Download installation binaries
15:26:08 CST message: [localhost]
downloading amd64 kubeadm v1.24.17 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 43.4M  100 43.4M    0     0   904k      0  0:00:49  0:00:49 --:--:-- 1084k
15:26:57 CST message: [localhost]
downloading amd64 kubelet v1.24.17 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  112M  100  112M    0     0   973k      0  0:01:58  0:01:58 --:--:-- 1088k
15:28:56 CST message: [localhost]
downloading amd64 kubectl v1.24.17 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 44.5M  100 44.5M    0     0   910k      0  0:00:50  0:00:50 --:--:-- 1087k
15:29:47 CST message: [localhost]
downloading amd64 helm v3.14.3 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 48.3M  100 48.3M    0     0   915k      0  0:00:54  0:00:54 --:--:-- 1076k
15:30:41 CST message: [localhost]
downloading amd64 kubecni v1.2.0 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 38.6M  100 38.6M    0     0   893k      0  0:00:44  0:00:44 --:--:-- 1088k
15:31:25 CST message: [localhost]
downloading amd64 crictl v1.29.0 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 23.2M  100 23.2M    0     0   821k      0  0:00:28  0:00:28 --:--:-- 1065k
15:31:54 CST message: [localhost]
downloading amd64 etcd v3.5.13 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 19.1M  100 19.1M    0     0   789k      0  0:00:24  0:00:24 --:--:-- 1062k
15:32:19 CST message: [localhost]
downloading amd64 containerd 1.7.13 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 45.7M  100 45.7M    0     0   910k      0  0:00:51  0:00:51 --:--:-- 1077k
15:33:11 CST message: [localhost]
downloading amd64 runc v1.1.12 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 10.2M  100 10.2M    0     0   660k      0  0:00:15  0:00:15 --:--:-- 1078k
15:33:27 CST message: [localhost]
downloading amd64 calicoctl v3.27.4 ...
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 61.3M  100 61.3M    0     0   933k      0  0:01:07  0:01:07 --:--:-- 1026k
15:34:34 CST success: [LocalHost]
15:34:34 CST [ConfigureOSModule] Get OS release
15:34:34 CST success: [k3s-worker-02]
15:34:34 CST success: [k3s-master]
15:34:34 CST success: [k3s-worker-01]
15:34:34 CST [ConfigureOSModule] Prepare to init OS
15:34:36 CST success: [k3s-worker-02]
15:34:36 CST success: [k3s-worker-01]
15:34:36 CST success: [k3s-master]
15:34:36 CST [ConfigureOSModule] Generate init os script
15:34:36 CST success: [k3s-worker-02]
15:34:36 CST success: [k3s-worker-01]
15:34:36 CST success: [k3s-master]
15:34:36 CST [ConfigureOSModule] Exec init os script
15:34:39 CST stdout: [k3s-worker-01]
setenforce: SELinux is disabled
Disabled
net.ipv4.tcp_syncookies = 1
net.ipv4.conf.all.accept_source_route = 0
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.all.rp_filter = 0
net.ipv4.icmp_echo_ignore_broadcasts = 1
net.ipv4.icmp_ignore_bogus_error_responses = 1
kernel.sched_child_runs_first = 1
kernel.sched_latency_ns = 80000000
kernel.sched_migration_cost_ns = 125000
kernel.sched_min_granularity_ns = 40000000
kernel.sched_wakeup_granularity_ns = 3750000
kernel.sched_nr_migrate = 128
kernel.pid_max = 65535
kernel.msgmax = 2097152
kernel.msgmnb = 4194304
kernel.shmmni = 32768
kernel.sem = 2000 256000 256 1024
vm.overcommit_memory = 0
vm.max_map_count = 262144
vm.swappiness = 0
vm.dirty_background_ratio = 40
vm.dirty_ratio = 50
fs.aio-max-nr = 262144
fs.inotify.max_user_instances = 524288
fs.inotify.max_user_watches = 524288
net.core.rps_sock_flow_entries = 65536
net.core.dev_weight = 1024
net.core.busy_poll = 200
net.core.busy_read = 200
net.ipv4.tcp_moderate_rcvbuf = 1
net.core.somaxconn = 32768
net.core.netdev_max_backlog = 65535
net.core.netdev_budget = 4800
net.ipv4.neigh.default.gc_thresh1 = 512
net.ipv4.neigh.default.gc_thresh2 = 2048
net.ipv4.neigh.default.gc_thresh3 = 4096
net.ipv4.neigh.default.unres_qlen_bytes = 262144
net.netfilter.nf_conntrack_max = 1048576
net.netfilter.nf_conntrack_tcp_timeout_established = 300
sysctl: setting key "net.netfilter.nf_conntrack_buckets": No such file or directory
net.ipv4.ipfrag_high_thresh = 16777216
net.ipv4.ipfrag_low_thresh = 12582912
net.ipv4.tcp_rmem = 8388608 16777216 67108864
net.ipv4.tcp_wmem = 8388608 16777216 67108864
net.ipv4.udp_rmem_min = 131072
net.ipv4.udp_wmem_min = 131072
net.core.rmem_default = 33554432
net.core.wmem_default = 33554432
net.core.rmem_max = 33554432
net.core.wmem_max = 33554432
net.ipv4.tcp_fin_timeout = 5
net.ipv4.tcp_keepalive_time = 600
net.ipv4.ip_local_port_range = 10000 65000
net.ipv4.tcp_max_syn_backlog = 1048576
net.ipv4.tcp_max_tw_buckets = 1048576
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-arptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_local_reserved_ports = 30000-32767
net.ipv4.tcp_retries2 = 15
net.ipv4.tcp_max_orphans = 65535
net.ipv4.tcp_keepalive_intvl = 30
net.ipv4.tcp_keepalive_probes = 10
net.ipv4.conf.default.rp_filter = 0
net.ipv4.conf.all.arp_accept = 1
net.ipv4.conf.default.arp_accept = 1
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.default.arp_ignore = 1
fs.pipe-max-size = 4194304
kernel.watchdog_thresh = 5
kernel.hung_task_timeout_secs = 5
net.ipv6.conf.all.disable_ipv6 = 0
net.ipv6.conf.default.disable_ipv6 = 0
net.ipv6.conf.lo.disable_ipv6 = 0
net.ipv6.conf.all.forwarding = 1
15:34:39 CST stdout: [k3s-worker-02]
setenforce: SELinux is disabled
Disabled
net.ipv4.tcp_syncookies = 1
net.ipv4.conf.all.accept_source_route = 0
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.all.rp_filter = 0
net.ipv4.icmp_echo_ignore_broadcasts = 1
net.ipv4.icmp_ignore_bogus_error_responses = 1
kernel.sched_child_runs_first = 1
kernel.sched_latency_ns = 80000000
kernel.sched_migration_cost_ns = 125000
kernel.sched_min_granularity_ns = 40000000
kernel.sched_wakeup_granularity_ns = 3750000
kernel.sched_nr_migrate = 128
kernel.pid_max = 65535
kernel.msgmax = 2097152
kernel.msgmnb = 4194304
kernel.shmmni = 32768
kernel.sem = 2000 256000 256 1024
vm.overcommit_memory = 0
vm.max_map_count = 262144
vm.swappiness = 0
vm.dirty_background_ratio = 40
vm.dirty_ratio = 50
fs.aio-max-nr = 262144
fs.inotify.max_user_instances = 524288
fs.inotify.max_user_watches = 524288
net.core.rps_sock_flow_entries = 65536
net.core.dev_weight = 1024
net.core.busy_poll = 200
net.core.busy_read = 200
net.ipv4.tcp_moderate_rcvbuf = 1
net.core.somaxconn = 32768
net.core.netdev_max_backlog = 65535
net.core.netdev_budget = 4800
net.ipv4.neigh.default.gc_thresh1 = 512
net.ipv4.neigh.default.gc_thresh2 = 2048
net.ipv4.neigh.default.gc_thresh3 = 4096
net.ipv4.neigh.default.unres_qlen_bytes = 262144
net.netfilter.nf_conntrack_max = 1048576
net.netfilter.nf_conntrack_tcp_timeout_established = 300
sysctl: setting key "net.netfilter.nf_conntrack_buckets": No such file or directory
net.ipv4.ipfrag_high_thresh = 16777216
net.ipv4.ipfrag_low_thresh = 12582912
net.ipv4.tcp_rmem = 8388608 16777216 67108864
net.ipv4.tcp_wmem = 8388608 16777216 67108864
net.ipv4.udp_rmem_min = 131072
net.ipv4.udp_wmem_min = 131072
net.core.rmem_default = 33554432
net.core.wmem_default = 33554432
net.core.rmem_max = 33554432
net.core.wmem_max = 33554432
net.ipv4.tcp_fin_timeout = 5
net.ipv4.tcp_keepalive_time = 600
net.ipv4.ip_local_port_range = 10000 65000
net.ipv4.tcp_max_syn_backlog = 1048576
net.ipv4.tcp_max_tw_buckets = 1048576
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-arptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_local_reserved_ports = 30000-32767
net.ipv4.tcp_retries2 = 15
net.ipv4.tcp_max_orphans = 65535
net.ipv4.tcp_keepalive_intvl = 30
net.ipv4.tcp_keepalive_probes = 10
net.ipv4.conf.default.rp_filter = 0
net.ipv4.conf.all.arp_accept = 1
net.ipv4.conf.default.arp_accept = 1
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.default.arp_ignore = 1
fs.pipe-max-size = 4194304
kernel.watchdog_thresh = 5
kernel.hung_task_timeout_secs = 5
net.ipv6.conf.all.disable_ipv6 = 0
net.ipv6.conf.default.disable_ipv6 = 0
net.ipv6.conf.lo.disable_ipv6 = 0
net.ipv6.conf.all.forwarding = 1
15:34:40 CST stdout: [k3s-master]
setenforce: SELinux is disabled
Disabled
net.ipv4.tcp_syncookies = 1
net.ipv4.conf.all.accept_source_route = 0
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.all.rp_filter = 0
net.ipv4.icmp_echo_ignore_broadcasts = 1
net.ipv4.icmp_ignore_bogus_error_responses = 1
kernel.sched_child_runs_first = 1
kernel.sched_latency_ns = 80000000
kernel.sched_migration_cost_ns = 125000
kernel.sched_min_granularity_ns = 40000000
kernel.sched_wakeup_granularity_ns = 3750000
kernel.sched_nr_migrate = 128
kernel.pid_max = 65535
kernel.msgmax = 2097152
kernel.msgmnb = 4194304
kernel.shmmni = 32768
kernel.sem = 2000 256000 256 1024
vm.overcommit_memory = 0
vm.max_map_count = 262144
vm.swappiness = 0
vm.dirty_background_ratio = 40
vm.dirty_ratio = 50
fs.aio-max-nr = 262144
fs.inotify.max_user_instances = 524288
fs.inotify.max_user_watches = 524288
net.core.rps_sock_flow_entries = 65536
net.core.dev_weight = 1024
net.core.busy_poll = 200
net.core.busy_read = 200
net.ipv4.tcp_moderate_rcvbuf = 1
net.core.somaxconn = 32768
net.core.netdev_max_backlog = 65535
net.core.netdev_budget = 4800
net.ipv4.neigh.default.gc_thresh1 = 512
net.ipv4.neigh.default.gc_thresh2 = 2048
net.ipv4.neigh.default.gc_thresh3 = 4096
net.ipv4.neigh.default.unres_qlen_bytes = 262144
net.netfilter.nf_conntrack_max = 1048576
net.netfilter.nf_conntrack_tcp_timeout_established = 300
sysctl: setting key "net.netfilter.nf_conntrack_buckets": No such file or directory
net.ipv4.ipfrag_high_thresh = 16777216
net.ipv4.ipfrag_low_thresh = 12582912
net.ipv4.tcp_rmem = 8388608 16777216 67108864
net.ipv4.tcp_wmem = 8388608 16777216 67108864
net.ipv4.udp_rmem_min = 131072
net.ipv4.udp_wmem_min = 131072
net.core.rmem_default = 33554432
net.core.wmem_default = 33554432
net.core.rmem_max = 33554432
net.core.wmem_max = 33554432
net.ipv4.tcp_fin_timeout = 5
net.ipv4.tcp_keepalive_time = 600
net.ipv4.ip_local_port_range = 10000 65000
net.ipv4.tcp_max_syn_backlog = 1048576
net.ipv4.tcp_max_tw_buckets = 1048576
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-arptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_local_reserved_ports = 30000-32767
net.ipv4.tcp_retries2 = 15
net.ipv4.tcp_max_orphans = 65535
net.ipv4.tcp_keepalive_intvl = 30
net.ipv4.tcp_keepalive_probes = 10
net.ipv4.conf.default.rp_filter = 0
net.ipv4.conf.all.arp_accept = 1
net.ipv4.conf.default.arp_accept = 1
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.default.arp_ignore = 1
fs.pipe-max-size = 4194304
kernel.watchdog_thresh = 5
kernel.hung_task_timeout_secs = 5
net.ipv6.conf.all.disable_ipv6 = 0
net.ipv6.conf.default.disable_ipv6 = 0
net.ipv6.conf.lo.disable_ipv6 = 0
net.ipv6.conf.all.forwarding = 1
15:34:40 CST success: [k3s-worker-01]
15:34:40 CST success: [k3s-worker-02]
15:34:40 CST success: [k3s-master]
15:34:40 CST [ConfigureOSModule] configure the ntp server for each node
15:34:40 CST skipped: [k3s-worker-01]
15:34:40 CST skipped: [k3s-master]
15:34:40 CST skipped: [k3s-worker-02]
15:34:40 CST [KubernetesStatusModule] Get kubernetes cluster status
15:34:41 CST stdout: [k3s-master]
v1.24.17
15:34:41 CST stdout: [k3s-master]
k3s-master      v1.24.17   [map[address:10.2.2.109 type:InternalIP] map[address:k3s-master type:Hostname]]
k3s-worker-01   v1.24.17   [map[address:10.2.2.140 type:InternalIP] map[address:k3s-worker-01 type:Hostname]]
15:34:42 CST stdout: [k3s-master]
W1009 15:34:42.019455   34906 utils.go:69] The recommended value for "clusterDNS" in "KubeletConfiguration" is: [10.233.0.10]; the provided value is: [169.254.25.10]
[upload-certs] Storing the certificates in Secret "kubeadm-certs" in the "kube-system" Namespace
[upload-certs] Using certificate key:
56a046cb392827bf42cec14effc1b0d27c3722e741e53ff9c5139d4c943b9efd
15:34:42 CST stdout: [k3s-master]
secret/kubeadm-certs patched
15:34:42 CST stdout: [k3s-master]
secret/kubeadm-certs patched
15:34:42 CST stdout: [k3s-master]
secret/kubeadm-certs patched
15:34:43 CST stdout: [k3s-master]
0x3xku.uqjzfg1xclpwfkey
15:34:43 CST success: [k3s-master]
15:34:43 CST [InstallContainerModule] Sync containerd binaries
15:34:43 CST skipped: [k3s-master]
15:34:43 CST skipped: [k3s-worker-01]
15:34:43 CST skipped: [k3s-worker-02]
15:34:43 CST [InstallContainerModule] Generate containerd service
15:34:43 CST skipped: [k3s-master]
15:34:43 CST skipped: [k3s-worker-01]
15:34:43 CST skipped: [k3s-worker-02]
15:34:43 CST [InstallContainerModule] Generate containerd config
15:34:43 CST skipped: [k3s-master]
15:34:43 CST skipped: [k3s-worker-01]
15:34:43 CST skipped: [k3s-worker-02]
15:34:43 CST [InstallContainerModule] Enable containerd
15:34:43 CST skipped: [k3s-master]
15:34:43 CST skipped: [k3s-worker-01]
15:34:43 CST skipped: [k3s-worker-02]
15:34:43 CST [InstallContainerModule] Sync crictl binaries
15:34:44 CST skipped: [k3s-master]
15:34:44 CST skipped: [k3s-worker-01]
15:34:44 CST skipped: [k3s-worker-02]
15:34:44 CST [InstallContainerModule] Generate crictl config
15:34:44 CST skipped: [k3s-master]
15:34:44 CST skipped: [k3s-worker-01]
15:34:44 CST success: [k3s-worker-02]
15:34:44 CST [PullModule] Start to pull images on all nodes
15:34:44 CST message: [k3s-worker-01]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/pause:3.7
15:34:44 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/pause:3.7
15:34:44 CST message: [k3s-worker-02]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/pause:3.7
15:34:44 CST message: [k3s-worker-02]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-proxy:v1.24.17
15:34:44 CST message: [k3s-worker-02]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/coredns:1.8.6
15:34:44 CST message: [k3s-worker-02]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/k8s-dns-node-cache:1.22.20
15:34:44 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-apiserver:v1.24.17
15:34:44 CST message: [k3s-worker-02]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-controllers:v3.27.4
15:34:44 CST message: [k3s-worker-02]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/cni:v3.27.4
15:34:44 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-controller-manager:v1.24.17
15:34:44 CST message: [k3s-worker-02]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/node:v3.27.4
15:34:44 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-scheduler:v1.24.17
15:34:44 CST message: [k3s-worker-02]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/pod2daemon-flexvol:v3.27.4
15:34:44 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-proxy:v1.24.17
15:34:45 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/coredns:1.8.6
15:34:45 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/k8s-dns-node-cache:1.22.20
15:34:45 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-controllers:v3.27.4
15:34:45 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/cni:v3.27.4
15:34:45 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/node:v3.27.4
15:34:45 CST message: [k3s-master]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/pod2daemon-flexvol:v3.27.4
15:34:46 CST message: [k3s-worker-01]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-proxy:v1.24.17
15:34:46 CST message: [k3s-worker-01]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/coredns:1.8.6
15:34:46 CST message: [k3s-worker-01]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/k8s-dns-node-cache:1.22.20
15:34:46 CST message: [k3s-worker-01]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/kube-controllers:v3.27.4
15:34:46 CST message: [k3s-worker-01]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/cni:v3.27.4
15:34:46 CST message: [k3s-worker-01]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/node:v3.27.4
15:34:46 CST message: [k3s-worker-01]
downloading image: registry.cn-beijing.aliyuncs.com/kubesphereio/pod2daemon-flexvol:v3.27.4
15:34:46 CST success: [k3s-worker-02]
15:34:46 CST success: [k3s-master]
15:34:46 CST success: [k3s-worker-01]
15:34:46 CST [ETCDPreCheckModule] Get etcd status
15:34:46 CST stdout: [k3s-master]
ETCD_NAME=etcd-k3s-master
15:34:46 CST success: [k3s-master]
15:34:46 CST [CertsModule] Fetch etcd certs
15:34:47 CST success: [k3s-master]
15:34:47 CST [CertsModule] Generate etcd Certs
[certs] Using existing ca certificate authority
[certs] Using existing admin-k3s-master certificate and key on disk
[certs] Using existing member-k3s-master certificate and key on disk
[certs] Using existing node-k3s-master certificate and key on disk
15:34:47 CST success: [LocalHost]
15:34:47 CST [CertsModule] Synchronize certs file
15:34:50 CST success: [k3s-master]
15:34:50 CST [CertsModule] Synchronize certs file to master
15:34:50 CST skipped: [k3s-master]
15:34:50 CST [InstallETCDBinaryModule] Install etcd using binary
15:34:50 CST skipped: [k3s-master]
15:34:50 CST [InstallETCDBinaryModule] Generate etcd service
15:34:50 CST skipped: [k3s-master]
15:34:50 CST [InstallETCDBinaryModule] Generate access address
15:34:50 CST success: [k3s-master]
15:34:50 CST [ETCDConfigureModule] Health check on exist etcd
15:34:50 CST success: [k3s-master]
15:34:50 CST [ETCDConfigureModule] Generate etcd.env config on new etcd
15:34:50 CST skipped: [k3s-master]
15:34:50 CST [ETCDConfigureModule] Join etcd member
15:34:50 CST skipped: [k3s-master]
15:34:50 CST [ETCDConfigureModule] Health check on new etcd
15:34:50 CST skipped: [k3s-master]
15:34:50 CST [ETCDConfigureModule] Check etcd member
15:34:50 CST skipped: [k3s-master]
15:34:50 CST [ETCDConfigureModule] Refresh etcd.env config on all etcd
15:34:50 CST skipped: [k3s-master]
15:34:50 CST [ETCDConfigureModule] Restart etcd
15:34:50 CST skipped: [k3s-master]
15:34:50 CST [ETCDConfigureModule] Health check on all etcd
15:34:50 CST success: [k3s-master]
15:34:50 CST [ETCDBackupModule] Backup etcd data regularly
15:34:50 CST success: [k3s-master]
15:34:50 CST [ETCDBackupModule] Generate backup ETCD service
15:34:50 CST success: [k3s-master]
15:34:50 CST [ETCDBackupModule] Generate backup ETCD timer
15:34:50 CST success: [k3s-master]
15:34:50 CST [ETCDBackupModule] Enable backup etcd service
15:34:51 CST success: [k3s-master]
15:34:51 CST [InstallKubeBinariesModule] Synchronize kubernetes binaries
15:35:00 CST skipped: [k3s-master]
15:35:00 CST skipped: [k3s-worker-01]
15:35:00 CST success: [k3s-worker-02]
15:35:00 CST [InstallKubeBinariesModule] Change kubelet mode
15:35:00 CST skipped: [k3s-master]
15:35:00 CST skipped: [k3s-worker-01]
15:35:00 CST success: [k3s-worker-02]
15:35:00 CST [InstallKubeBinariesModule] Generate kubelet service
15:35:00 CST skipped: [k3s-master]
15:35:00 CST skipped: [k3s-worker-01]
15:35:00 CST success: [k3s-worker-02]
15:35:00 CST [InstallKubeBinariesModule] Enable kubelet service
15:35:01 CST skipped: [k3s-worker-01]
15:35:01 CST skipped: [k3s-master]
15:35:01 CST success: [k3s-worker-02]
15:35:01 CST [InstallKubeBinariesModule] Generate kubelet env
15:35:02 CST skipped: [k3s-master]
15:35:02 CST skipped: [k3s-worker-01]
15:35:02 CST success: [k3s-worker-02]
15:35:02 CST [JoinNodesModule] Generate kubeadm config
15:35:02 CST skipped: [k3s-master]
15:35:02 CST skipped: [k3s-worker-01]
15:35:02 CST success: [k3s-worker-02]
15:35:02 CST [JoinNodesModule] Generate audit policy
15:35:02 CST skipped: [k3s-master]
15:35:02 CST [JoinNodesModule] Generate audit webhook
15:35:02 CST skipped: [k3s-master]
15:35:02 CST [JoinNodesModule] Join control-plane node
15:35:02 CST skipped: [k3s-master]
15:35:02 CST [JoinNodesModule] Join worker node
15:35:17 CST stdout: [k3s-worker-02]
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
W1009 15:35:02.987472   10480 utils.go:69] The recommended value for "clusterDNS" in "KubeletConfiguration" is: [10.233.0.10]; the provided value is: [169.254.25.10]
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
15:35:17 CST skipped: [k3s-master]
15:35:17 CST skipped: [k3s-worker-01]
15:35:17 CST success: [k3s-worker-02]
15:35:17 CST [JoinNodesModule] Copy admin.conf to ~/.kube/config
15:35:17 CST skipped: [k3s-master]
15:35:17 CST [JoinNodesModule] Remove master taint
15:35:17 CST skipped: [k3s-master]
15:35:17 CST [JoinNodesModule] Add worker label to all nodes
15:35:18 CST stdout: [k3s-master]
node/k3s-master not labeled
15:35:18 CST stdout: [k3s-master]
node/k3s-worker-01 not labeled
15:35:18 CST stdout: [k3s-master]
node/k3s-worker-02 labeled
15:35:18 CST success: [k3s-master]
15:35:18 CST [ConfigureKubernetesModule] Configure kubernetes
15:35:18 CST success: [k3s-master]
15:35:18 CST [ChownModule] Chown user $HOME/.kube dir
15:35:18 CST success: [k3s-worker-02]
15:35:18 CST success: [k3s-worker-01]
15:35:18 CST success: [k3s-master]
15:35:18 CST [AutoRenewCertsModule] Generate k8s certs renew script
15:35:18 CST success: [k3s-master]
15:35:18 CST [AutoRenewCertsModule] Generate k8s certs renew service
15:35:19 CST success: [k3s-master]
15:35:19 CST [AutoRenewCertsModule] Generate k8s certs renew timer
15:35:19 CST success: [k3s-master]
15:35:19 CST [AutoRenewCertsModule] Enable k8s certs renew service
15:35:19 CST success: [k3s-master]
15:35:19 CST Pipeline[AddNodesPipeline] execute successfully

验证集群状态。

1
2
3
4
5
6
7
8
9
10
11
> kubectl get node,cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS   ROLES                  AGE    VERSION
node/k3s-master      Ready    control-plane,worker   108m   v1.24.17
node/k3s-worker-01   Ready    worker                 20m    v1.24.17
node/k3s-worker-02   Ready    worker                 99s    v1.24.17

NAME                                 STATUS    MESSAGE                         ERROR
componentstatus/scheduler            Healthy   ok
componentstatus/controller-manager   Healthy   ok
componentstatus/etcd-0               Healthy   {"health":"true","reason":""}

查看控制台，Worker 节点成功接入集群。

为方便使用，建议修改 NodePort 的端口范围，在所有服务器节点执行。

1
2
3
4
5
6
> vim /etc/kubernetes/manifests/kube-apiserver.yaml

  - --service-node-port-range=1-65535

> systemctl daemon-reload
> systemctl restart kubelet

创建 NFS 存储类

在所有服务器节点执行。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
> export KUBECONFIG=/etc/kubernetes/admin.conf
> helm repo add nfs-subdir-external-provisioner https://kubernetes-sigs.github.io/nfs-subdir-external-provisioner/

# 创建名为 data-nfs-client 的存储类，用于存储数据
> helm install data-nfs-provisioner nfs-subdir-external-provisioner/nfs-subdir-external-provisioner --set nfs.server=10.2.1.9 --set nfs.path=/nfs/kubesphere/data --set replicaCount=3 --set storageClass.name=data-nfs-client --set storageClass.provisionerName=nfs-data --set storageClass.accessModes=ReadWriteMany --set nfs.volumeName=data-nfs-root --set image.repository=m.daocloud.io/registry.k8s.io/sig-storage/nfs-subdir-external-provisioner

# 创建名为 log-nfs-client 的存储类，用于存储日志
> helm install log-nfs-provisioner nfs-subdir-external-provisioner/nfs-subdir-external-provisioner --set nfs.server=10.2.1.9 --set nfs.path=/nfs/kubesphere/log --set replicaCount=1 --set storageClass.name=log-nfs-client --set storageClass.provisionerName=nfs-log --set storageClass.accessModes=ReadWriteMany --set nfs.volumeName=log-nfs-root --set image.repository=m.daocloud.io/registry.k8s.io/sig-storage/nfs-subdir-external-provisioner

# 创建名为 config-nfs-client 的存储类，用于存储配置
> helm install config-nfs-provisioner nfs-subdir-external-provisioner/nfs-subdir-external-provisioner --set nfs.server=10.2.1.9 --set nfs.path=/nfs/kubesphere/config --set replicaCount=3 --set storageClass.name=config-nfs-client --set storageClass.provisionerName=nfs-config --set storageClass.accessModes=ReadWriteMany --set nfs.volumeName=config-nfs-root --set image.repository=m.daocloud.io/registry.k8s.io/sig-storage/nfs-subdir-external-provisioner

# 设置默认的存储类为数据盘
> kubectl patch storageclass data-nfs-client -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'
storageclass.storage.k8s.io/data-nfs-client patched

调整镜像仓库配置

DaoCloud 提供了 DockerHub 的加速镜像源。如果您无法访问 DockerHub，可以参考以下代码片段进行设置。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
# 查看 K8s 使用 CONTAINER-TUNTIME 是 containerd:// 还是 docker://
> kubectl get nodes -o wide
NAME            STATUS   ROLES                  AGE     VERSION    INTERNAL-IP   EXTERNAL-IP   OS-IMAGE                KERNEL-VERSION                 CONTAINER-RUNTIME
k3s-master      Ready    control-plane,worker   3d23h   v1.24.17   10.2.2.109    <none>        CentOS Linux 7 (Core)   3.10.0-1160.119.1.el7.x86_64   containerd://1.6.33
k3s-worker-01   Ready    worker                 3d22h   v1.24.17   10.2.2.140    <none>        CentOS Linux 7 (Core)   3.10.0-1160.119.1.el7.x86_64   containerd://1.6.33
k3s-worker-02   Ready    worker                 3d22h   v1.24.17   10.2.2.211    <none>        CentOS Linux 7 (Core)   3.10.0-1160.119.1.el7.x86_64   containerd://1.6.33

# If use docker
> vim /etc/docker/daemon.json
{
    "registry-mirrors": ["https://docker.m.daocloud.io"]
}
:wq
> sudo systemctl daemon-reload
> sudo systemctl restart docker

# If use containerd
> vim /etc/containerd/config.toml

[plugins]
  [plugins."io.containerd.grpc.v1.cri"]
    ...
    [plugins."io.containerd.grpc.v1.cri".registry]
      [plugins."io.containerd.grpc.v1.cri".registry.mirrors]
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
          endpoint = ["https://docker.m.daocloud.io"]

> sudo systemctl daemon-reload
> sudo systemctl restart containerd
