背景

因 SOX 项目审计，检查到我们使用 Jenkins 开源版本作为发版工具，但 Jenkins 的密码策略不符合基本的安全要求，例如密码长度不能小于 8 个字符，需要包含大小写字母、数字和特殊字符，需要进行整改。

目标

选择正确的方案，满足 Jenkins 的密码策略要求。

实现

使用 2FA 双因素认证插件

在 Jenkins 插件管理搜索 MFA 安装。

插件安全完成后，在系统管理出现新的选项 2FA Global Configurations。

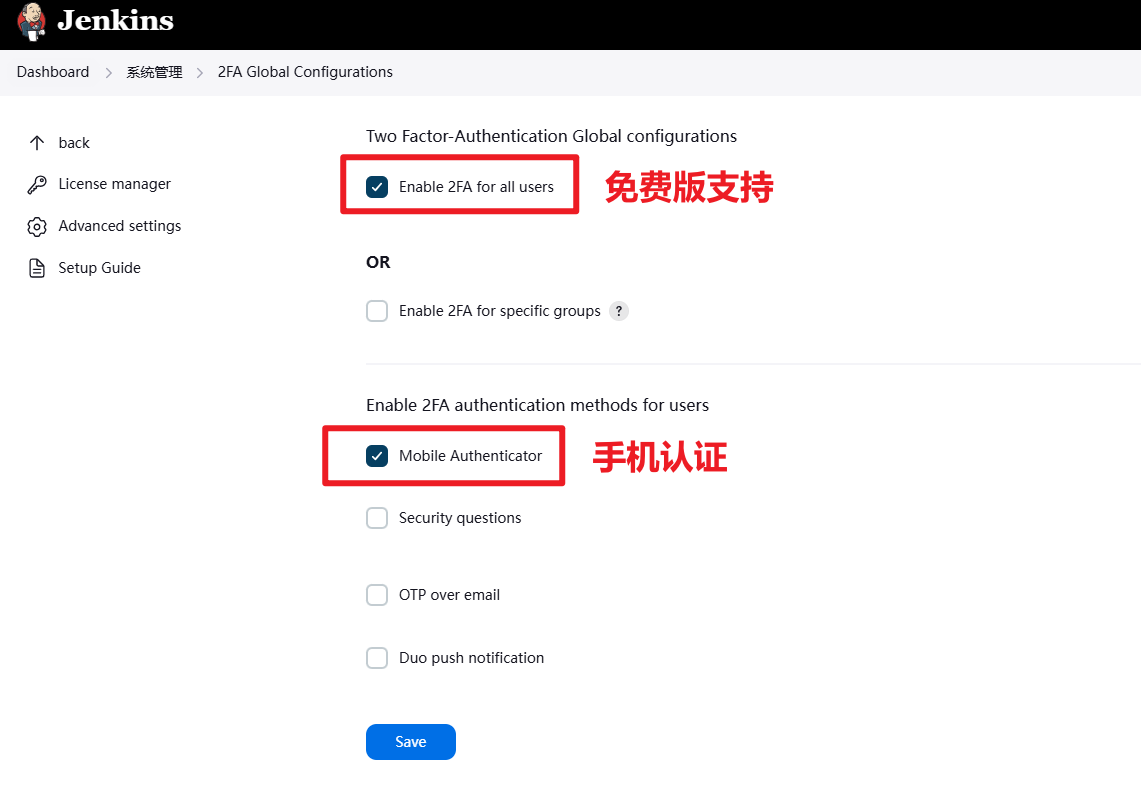

在配置里面勾选 Enable 2FA for all users 和 Mobile Authenticator 表示对所有用户开启 2FA 认证。

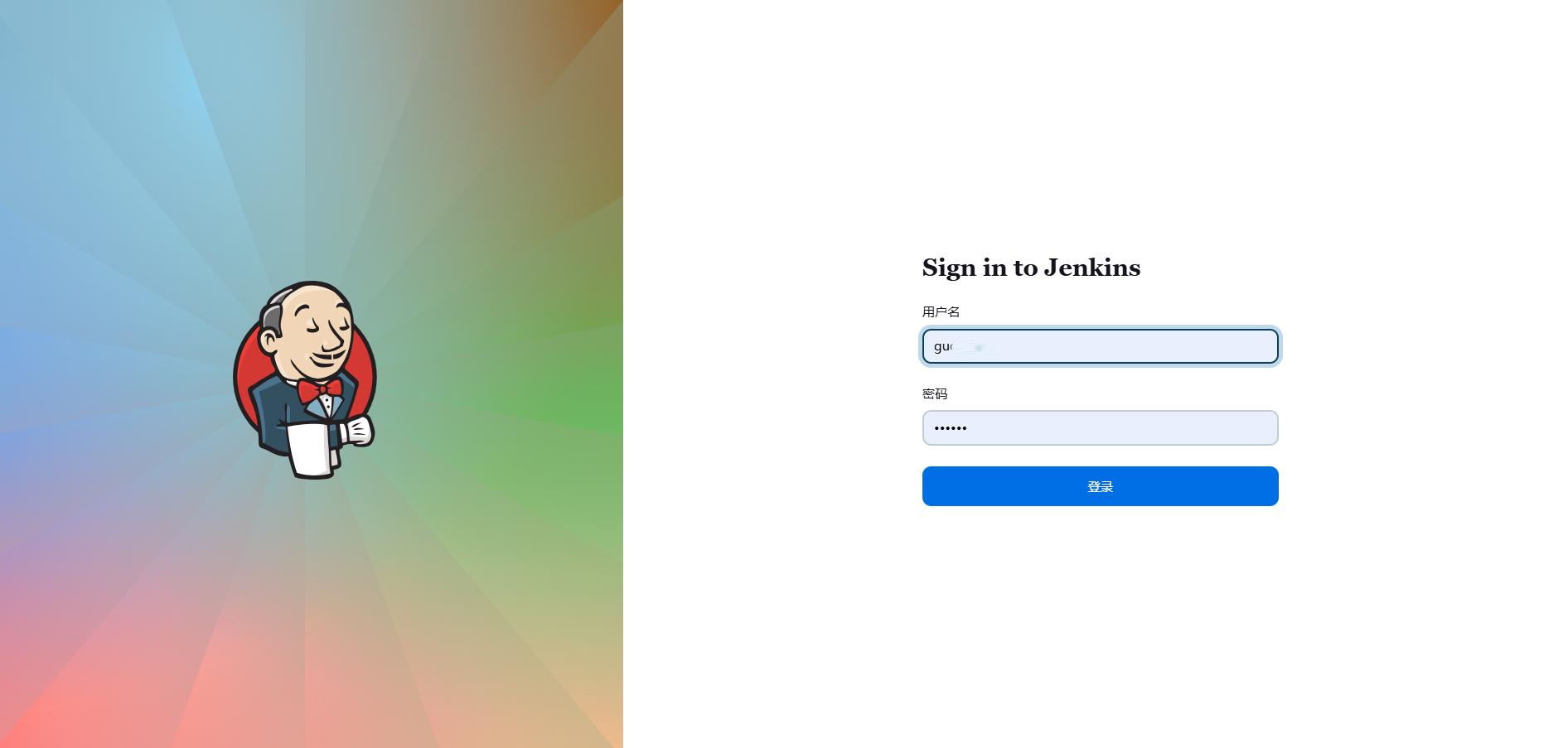

接下来我们进行测试，进入登录页面。

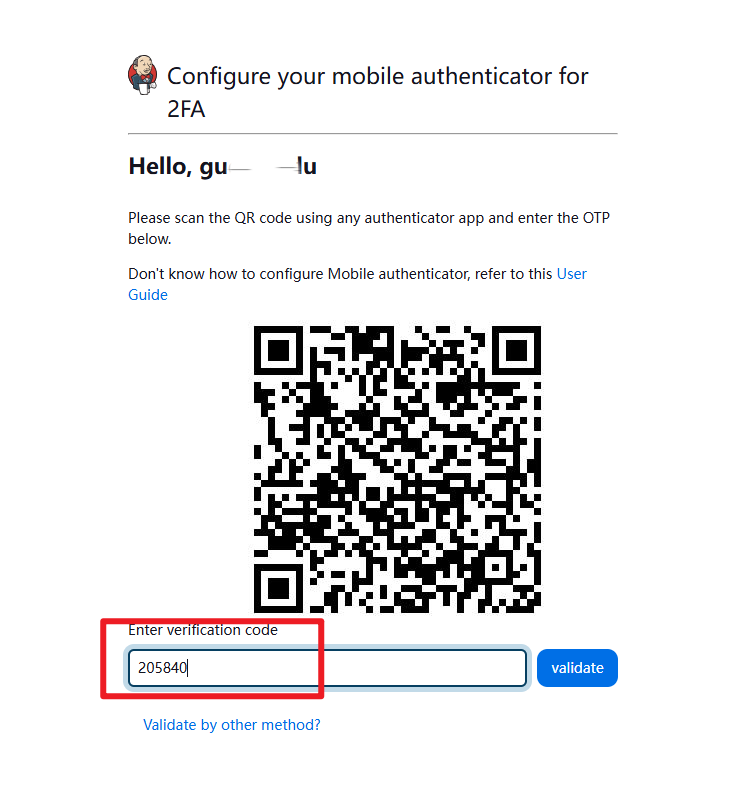

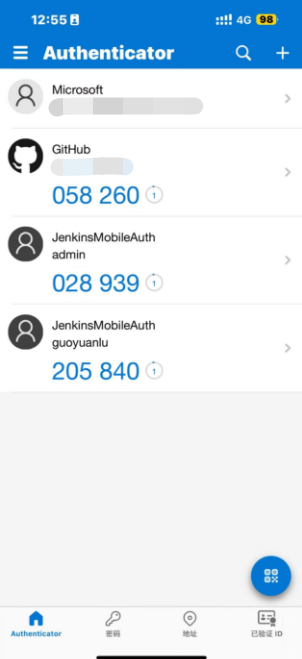

输入用户和密码后，弹出二维码，手机下载 Authenticator 软件，扫码。

输入 6 位动态验证码

登陆成功。

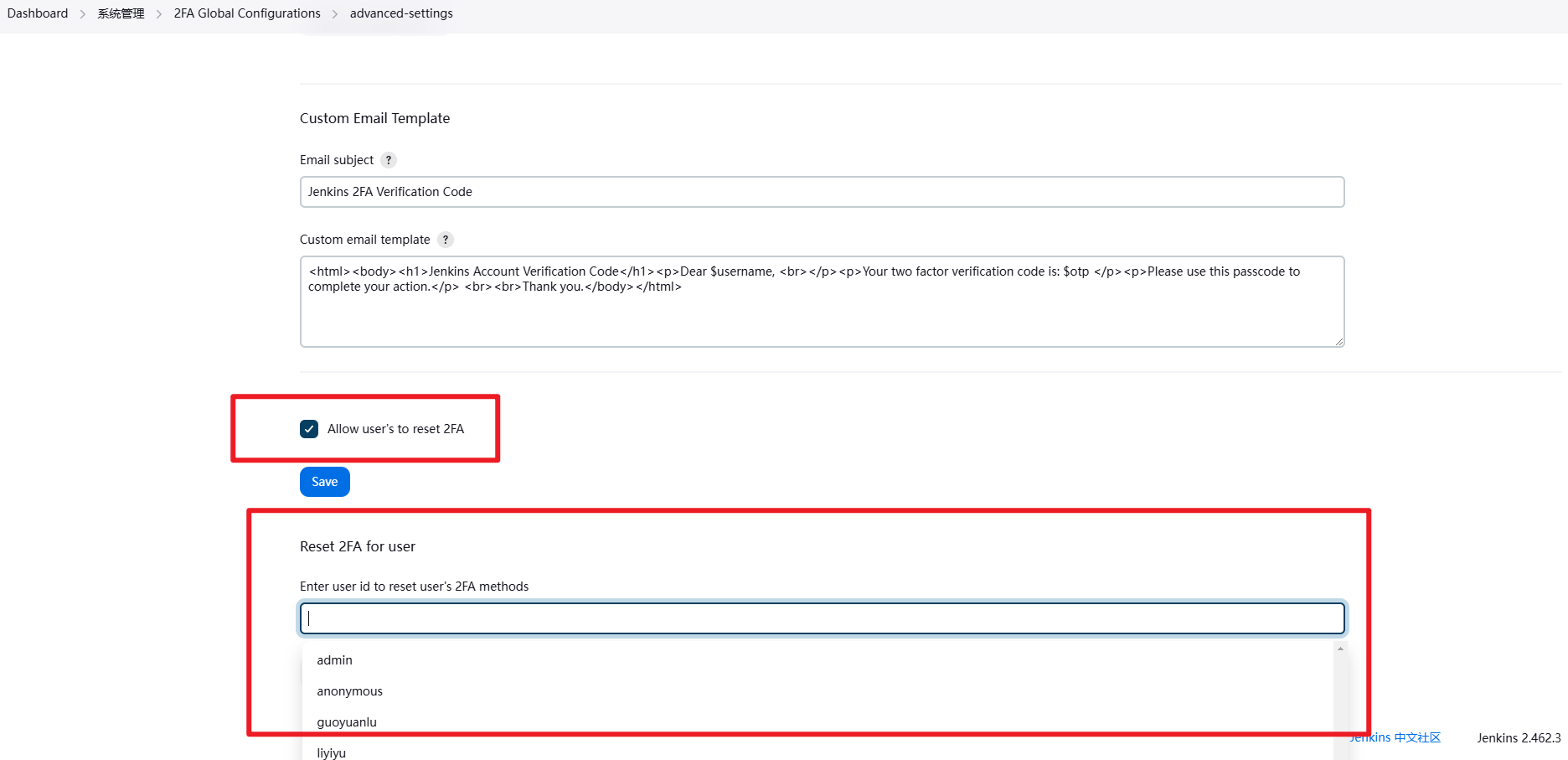

一个验证码只能被一个手机APP绑定，更换APP设备需要管理员从系统管理 reset 重置二维码绑定。

整个流程下来，使用 2FA 双因素认证插件是没有问题的，但是，这个插件是收费的，并且对 Jenkins 版本有要求，笔者公司的 Jenkins 版本为 2.356，没办法安装。

基于 Jenkins 官方源码改造

直接 git clone 官方源码，找到设置密码的代码位置。

修改后台代码，路径：
hudson.security.HudsonPrivateSecurityRealm。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
public class HudsonPrivateSecurityRealm extends AbstractPasswordBasedSecurityRealm implements ModelObject, AccessControlled {

    //...
    @Extension @Symbol("password")
        public static final class DescriptorImpl extends UserPropertyDescriptor {
            @NonNull
            @Override
            public String getDisplayName() {
                return Messages.HudsonPrivateSecurityRealm_Details_DisplayName();
            }

            @Override
            public Details newInstance(StaplerRequest req, JSONObject formData) throws FormException {
                if (req == null) {
                    // Should never happen, see newInstance() Javadoc
                    throw new FormException("Stapler request is missing in the call", "staplerRequest");
                }
                String pwd = Util.fixEmpty(req.getParameter("user.password"));
                String pwd2 = Util.fixEmpty(req.getParameter("user.password2"));

                if (pwd == null || pwd2 == null) {
                    // one of the fields is empty
                    throw new FormException("Please confirm the password by typing it twice", "user.password2");
                }

                // will be null if it wasn't encrypted
                String data = Protector.unprotect(pwd);
                String data2 = Protector.unprotect(pwd2);

                if (data == null != (data2 == null)) {
                    // Require that both values are protected or unprotected; do not allow user to change just one text field
                    throw new FormException("Please confirm the password by typing it twice", "user.password2");
                }

                if (data != null /* && data2 != null */ && !MessageDigest.isEqual(data.getBytes(StandardCharsets.UTF_8), data2.getBytes(StandardCharsets.UTF_8))) {
                    // passwords are different encrypted values
                    throw new FormException("Please confirm the password by typing it twice", "user.password2");
                }

                if (data == null /* && data2 == null */ && !pwd.equals(pwd2)) {
                    // passwords are different plain values
                    throw new FormException("Please confirm the password by typing it twice", "user.password2");
                }

                /********** 新增密码复杂度 start **********/
                // Validate password complexity
                if (pwd.length() < 8) {
                    throw new FormException("Password must be at least 8 characters long", "user.password");
                }

                // Check if it contains at least one lowercase letter
                if (!pwd.matches(".*[a-z].*")) {
                    throw new FormException("Password must contain at least one lowercase letter", "user.password");
                }

                // Check if it contains at least one uppercase letter
                if (!pwd.matches(".*[A-Z].*")) {
                    throw new FormException("Password must contain at least one uppercase letter", "user.password");
                }

                // Check if it contains at least one digit
                if (!pwd.matches(".*[0-9].*")) {
                    throw new FormException("Password must contain at least one digit", "user.password");
                }

                // Check if it contains at least one special character (common set)
                if (!pwd.matches(".*[!@#$%^&*(),.?\":{}|<>].*")) {
                    throw new FormException("Password must contain at least one special character (e.g., !@#$%^&*()-_=+[]{}|;:'\",.<>?/)", "user.password");
                }

                /********** 新增密码复杂度 end **********/

                if (data != null) {
                    String prefix = Stapler.getCurrentRequest().getSession().getId() + ':';
                    if (data.startsWith(prefix)) {
                        return Details.fromHashedPassword(data.substring(prefix.length()));
                    }
                }

                User user = Util.getNearestAncestorOfTypeOrThrow(req, User.class);
                // the UserSeedProperty is not touched by the configure page
                UserSeedProperty userSeedProperty = user.getProperty(UserSeedProperty.class);
                if (userSeedProperty != null) {
                    userSeedProperty.renewSeed();
                }

                return Details.fromPlainPassword(Util.fixNull(pwd));
            }

            @Override
            public boolean isEnabled() {
                // this feature is only when HudsonPrivateSecurityRealm is enabled
                return Jenkins.get().getSecurityRealm() instanceof HudsonPrivateSecurityRealm;
            }

            @Override
            public UserProperty newInstance(User user) {
                return null;
            }
        }
    }
}

修改页面代码，路径：
core/src/main/resources/hudson/security/HudsonPrivateSecurityRealm/Details/config.jelly。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
<?jelly escape-by-default='true'?>
<j:jelly xmlns:j="jelly:core" xmlns:x="jelly:xml" xmlns:f="/lib/form">
    <f:entry title="${%Password}:">
        <input id="password" class="jenkins-input" name="user.password" type="password" value="${instance.protectedPassword}" />
        <span id="passwordHint" style="color:red;"></span>
    </f:entry>
    <f:entry title="${%Confirm Password}:">
        <input id="password2" class="jenkins-input" name="user.password2" type="password" value="${instance.protectedPassword}" />
        <span id="confirmPasswordHint" style="color:red;"></span>
    </f:entry>

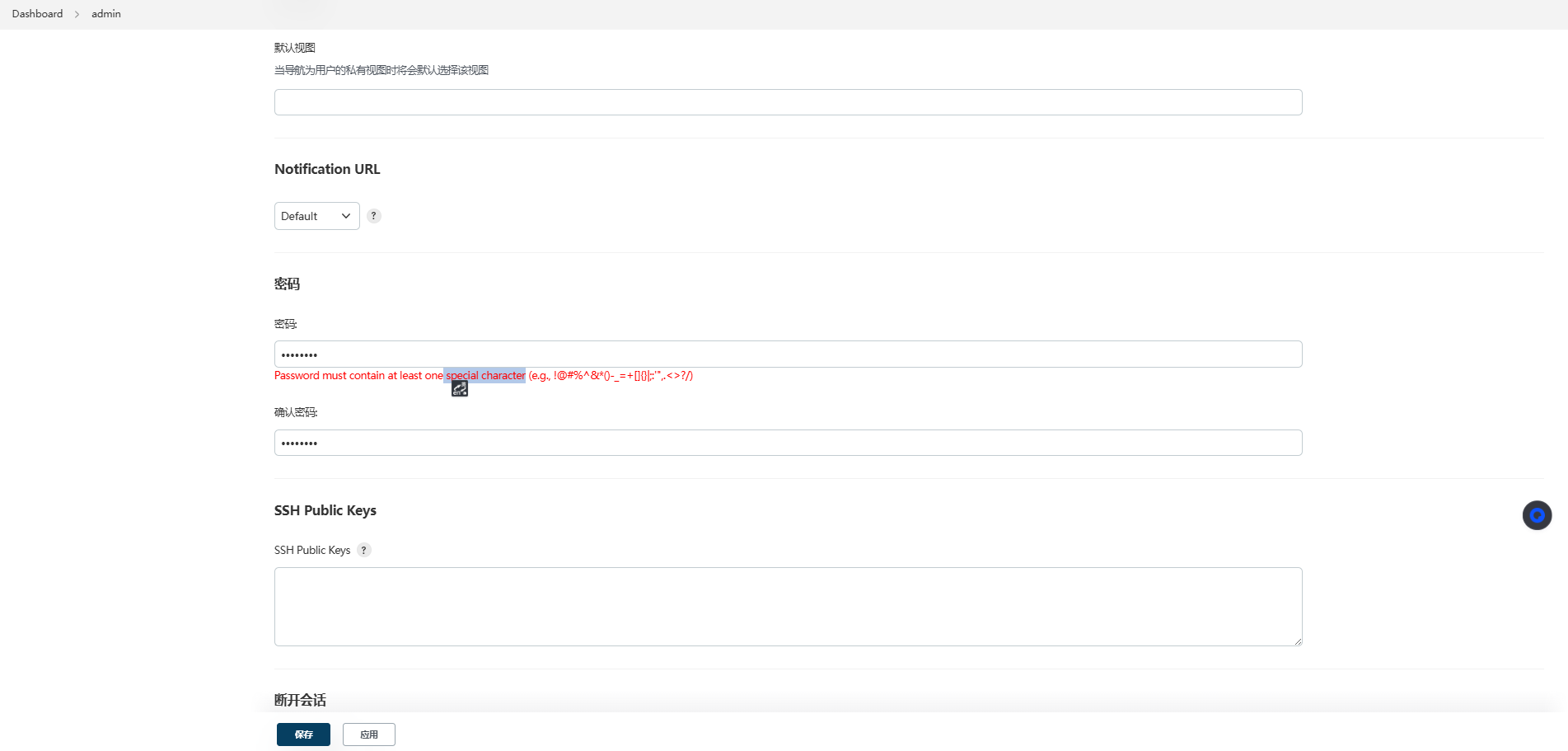

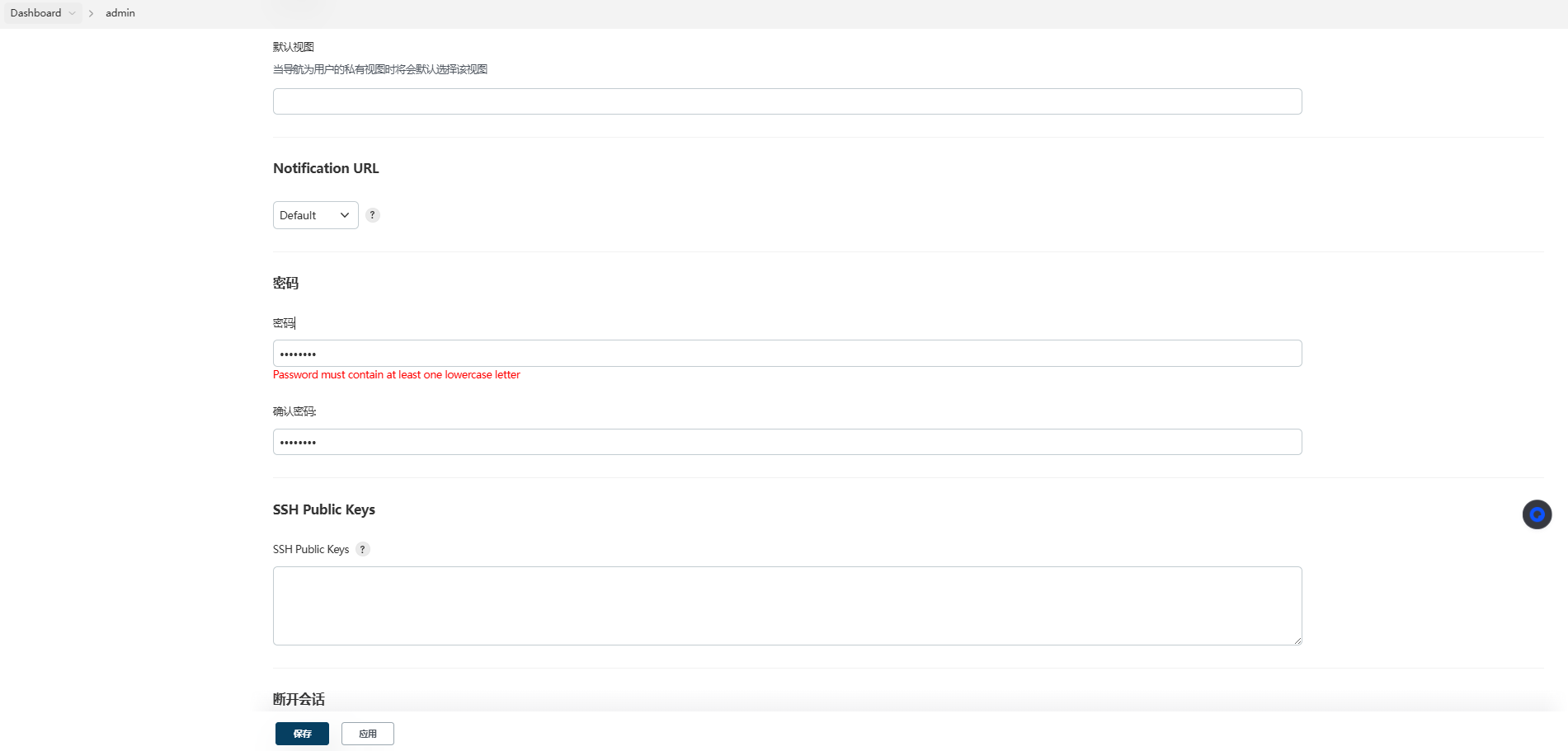

    <!-- 新增密码复杂度校验 -->
    <script type="text/javascript">
        // <![CDATA[
        document.getElementById('password').addEventListener('input', function() {
            var password = this.value;
            var hintElement = document.getElementById('passwordHint');
            var result = checkPasswordStrength(password);
            if (result) {
                hintElement.textContent = result;
                hintElement.style.display = 'inline';
            } else {
                hintElement.textContent = '';
                hintElement.style.display = 'none';
            }
        });

        function checkPasswordStrength(password) {
            // Check password length
            if (password.length < 8) {
                return "Password must be at least 8 characters long";
            }

            // Check for at least one uppercase letter
            if (!/[A-Z]/.test(password)) {
                return "Password must contain at least one uppercase letter";
            }

            // Check for at least one lowercase letter
            if (!/[a-z]/.test(password)) {
                return "Password must contain at least one lowercase letter";
            }

            // Check for at least one digit
            if (!/\d/.test(password)) {
                return "Password must contain at least one digit";
            }

            // Check for at least one special character (common set)
            if (!/[!@#$%^&*()\-_=+$${}|;:',.<>?/\\]/.test(password)) {
                return "Password must contain at least one special character (e.g., !@#$%^&*()-_=+[]{}|;:'\",.<>?/)";
            }

            // Password meets all criteria
            return null; // Password is valid
        }

        document.getElementById('password2').addEventListener('input', function() {
            var password = document.getElementById('password').value;
            var confirmPassword = this.value;
            var hintElement = document.getElementById('confirmPasswordHint');
            if (password !== confirmPassword) {
                hintElement.textContent = "Please confirm the password by typing it twice";
                hintElement.style.display = 'inline';
            } else {
                hintElement.textContent = '';
                hintElement.style.display = 'none';
            }
        });
        // ]]>
    </script>
</j:jelly>

官方源码并没有 Dockerfile 文件，笔者从 Jenkins 镜像反向查到对应的 Docker 源码：
https://github.com/jenkinsci/docker/blob/2.410/11/centos/centos7/hotspot/Dockerfile。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
FROM eclipse-temurin:11.0.19_7-jdk-centos7 as jre-build

# Generate smaller java runtime without unneeded files
# for now we include the full module path to maintain compatibility
# while still saving space (approx 200mb from the full distribution)
RUN jlink \
         --add-modules ALL-MODULE-PATH \
         --no-man-pages \
         --compress=2 \
         --output /javaruntime

FROM centos:centos7.9.2009

RUN sed -e 's|^mirrorlist=|#mirrorlist=|g' \
        -e 's|^#baseurl=http://mirror.centos.org|baseurl=https://mirrors.aliyun.com|g' \
        -i.bak /etc/yum.repos.d/CentOS-Base.repo

RUN yum install -y \
    curl \
    fontconfig \
    freetype \
    git \
    unzip \
    which \
  && yum clean all

RUN curl -s https://packagecloud.io/install/repositories/github/git-lfs/script.rpm.sh -o /tmp/script.rpm.sh \
  && bash /tmp/script.rpm.sh \
  && rm -f /tmp/script.rpm.sh \
  && yum install -y \
    git-lfs \
  && yum clean all \
  && git lfs install

ENV LANG='en_US.UTF-8' LANGUAGE='en_US:en' LC_ALL='en_US.UTF-8'

ARG TARGETARCH
ARG COMMIT_SHA

ARG user=jenkins
ARG group=jenkins
ARG uid=1000
ARG gid=1000
ARG http_port=8080
ARG agent_port=50000
ARG JENKINS_HOME=/var/jenkins_home
ARG REF=/usr/share/jenkins/ref

ENV JENKINS_HOME $JENKINS_HOME
ENV JENKINS_SLAVE_AGENT_PORT ${agent_port}
ENV REF $REF

# Jenkins is run with user `jenkins`, uid = 1000
# If you bind mount a volume from the host or a data container,
# ensure you use the same uid
RUN mkdir -p $JENKINS_HOME \
  && chown ${uid}:${gid} $JENKINS_HOME \
  && groupadd -g ${gid} ${group} \
  && useradd -N -d "$JENKINS_HOME" -u ${uid} -g ${gid} -l -m -s /bin/bash ${user}

# Jenkins home directory is a volume, so configuration and build history
# can be persisted and survive image upgrades
VOLUME $JENKINS_HOME

# $REF (defaults to `/usr/share/jenkins/ref/`) contains all reference configuration we want
# to set on a fresh new installation. Use it to bundle additional plugins
# or config file with your custom jenkins Docker image.
RUN mkdir -p ${REF}/init.groovy.d

# Use tini as subreaper in Docker container to adopt zombie processes
ARG TINI_VERSION=v0.19.0
COPY ../tini_pub.gpg "${JENKINS_HOME}/tini_pub.gpg"
RUN curl -fsSL "https://github.com/krallin/tini/releases/download/${TINI_VERSION}/tini-static-${TARGETARCH}" -o /sbin/tini \
  && curl -fsSL "https://github.com/krallin/tini/releases/download/${TINI_VERSION}/tini-static-${TARGETARCH}.asc" -o /sbin/tini.asc \
  && gpg --no-tty --import "${JENKINS_HOME}/tini_pub.gpg" \
  && gpg --verify /sbin/tini.asc \
  && rm -rf /sbin/tini.asc /root/.gnupg \
  && chmod +x /sbin/tini

# jenkins version being bundled in this docker image
ARG JENKINS_VERSION
ENV JENKINS_VERSION ${JENKINS_VERSION:-2.356}

# jenkins.war checksum, download will be validated using it
#ARG JENKINS_SHA=1163c4554dc93439c5eef02b06a8d74f98ca920bbc012c2b8a089d414cfa8075

# Can be used to customize where jenkins.war get downloaded from
#ARG JENKINS_URL=https://repo.jenkins-ci.org/public/org/jenkins-ci/main/jenkins-war/${JENKINS_VERSION}/jenkins-war-${JENKINS_VERSION}.war

# could use ADD but this one does not check Last-Modified header neither does it allow to control checksum
# see https://github.com/docker/docker/issues/8331
#RUN curl -fsSL ${JENKINS_URL} -o /usr/share/jenkins/jenkins.war \
#  && echo "${JENKINS_SHA}  /usr/share/jenkins/jenkins.war" >/tmp/jenkins_sha \
#  && sha256sum -c --strict /tmp/jenkins_sha \
#  && rm -f /tmp/jenkins_sha
COPY war/target/jenkins.war /usr/share/jenkins/jenkins.war

ENV JENKINS_UC https://updates.jenkins.io
ENV JENKINS_UC_EXPERIMENTAL=https://updates.jenkins.io/experimental
ENV JENKINS_INCREMENTALS_REPO_MIRROR=https://repo.jenkins-ci.org/incrementals
RUN chown -R ${user} "$JENKINS_HOME" "$REF"

ARG PLUGIN_CLI_VERSION=2.12.11
ARG PLUGIN_CLI_URL=https://github.com/jenkinsci/plugin-installation-manager-tool/releases/download/${PLUGIN_CLI_VERSION}/jenkins-plugin-manager-${PLUGIN_CLI_VERSION}.jar
RUN curl -fsSL ${PLUGIN_CLI_URL} -o /opt/jenkins-plugin-manager.jar

# for main web interface:
EXPOSE ${http_port}

# will be used by attached agents:
EXPOSE ${agent_port}

ENV COPY_REFERENCE_FILE_LOG $JENKINS_HOME/copy_reference_file.log

ENV JAVA_HOME=/opt/java/openjdk
ENV PATH "${JAVA_HOME}/bin:${PATH}"
COPY --from=jre-build /javaruntime $JAVA_HOME

COPY ../jenkins-support /usr/local/bin/jenkins-support
COPY ../jenkins.sh /usr/local/bin/jenkins.sh
COPY ../jenkins-plugin-cli.sh /bin/jenkins-plugin-cli

RUN chmod +x /usr/local/bin/jenkins-support \
    && chmod +x /usr/local/bin/jenkins.sh \
    && chmod +x /bin/jenkins-plugin-cli

USER ${user}

ENTRYPOINT ["/sbin/tini", "--", "/usr/local/bin/jenkins.sh"]

# metadata labels
LABEL \
    org.opencontainers.image.vendor="Jenkins project" \
    org.opencontainers.image.title="Official Jenkins Docker image" \
    org.opencontainers.image.description="The Jenkins Continuous Integration and Delivery server" \
    org.opencontainers.image.version="${JENKINS_VERSION}" \
    org.opencontainers.image.url="https://www.jenkins.io/" \
    org.opencontainers.image.source="https://github.com/jenkinsci/docker" \
    org.opencontainers.image.revision="${COMMIT_SHA}" \
    org.opencontainers.image.licenses="MIT"

构建镜像的问题解决了，直接部署升级测试，效果如下。

密码长度校验：

小写字母校验：

大写字母校验：

特殊字符校验：

验证通过，笔者也把修改完的 Jenkins 镜像上传到了 Docker Hub，地址为：
https://hub.docker.com/r/shiyindaxiaojie/jenkins。

如果您对版本有要求，可以按上述的步骤自行编译镜像。

产出

Jenkins 是最常用的版本发布工具，有些企业在安全审计层面，规定 Jenkins 需要满足基本的密码策略要求，我们可以选择 2FA 双因素插件或者二次开发解决。前者需要一定费用，并且不支持低版本，后者只需要小小的改动就能解决。

本文涉及的代码完全开源，感兴趣的伙伴可以查阅 jenkins。
