背景

在微服务架构中，日志的完整性和可读性是排查问题的关键。传统日志框架（如Log4j2）默认会输出异常的全部堆栈信息，但在高并发或复杂调用链路场景下，这会导致以下问题：

  1. 日志冗余：一次请求产生的完整堆栈可能包含数百行，增加存储和分析成本；
  2. 信息过载：开发人员需手动筛选关键堆栈节点，一般只关注最底部的 Cause By，影响排查效率；
  3. 线程安全：异步线程池中，堆栈信息可能因线程复用而断裂。

因此，需要一个 log4j2 插件来解决这些问题。

目标

设计一个轻量级插件，实现异常堆栈倒排，压缩日志内容，零侵入配置。

实现

使用 Log4j2 插件提供的扩展点 LogEventPatternConverter 进行实现。

倒排堆栈

在 LogEventPatternConverter 提供的 format 方法扩展格式化日志输出。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
@Override
public void format(LogEvent event, StringBuilder output) {
  Throwable throwable = event.getThrown();
  if (throwable != null) {
    ForwardCounter counter = new ForwardCounter();
    output.append("\n");
    recursiveReversePrint(throwable, output, counter); // 倒排
  }
}

private void recursiveReversePrint(Throwable throwable, StringBuilder output,
                    ForwardCounter counter) {
  if (throwable == null || counter.value >= causeDepth) {
    return;
  }

  if (throwable.getCause() != null) {
    recursiveReversePrint(throwable.getCause(), output, counter);
  }

  if (counter.value++ < causeDepth) {
    printSingleStack(throwable, output);
  }
}

private void printSingleStack(Throwable throwable, StringBuilder output) {
  output.append(reduceClassName(throwable.getClass().getName()))
    .append(": ")
    .append(throwable.getMessage())
    .append("\n");

  StackTraceElement[] stack = throwable.getStackTrace();
  for (int i = 0; i < Math.min(stackDepth, stack.length); i++) {
    output.append("\tat ")
      .append(formatStackElement(stack[i])) // 压缩堆栈信息，下文会提及到
      .append("\n");
  }

  if (stack.length > stackDepth) {
    output.append("\t... ").append(stack.length - stackDepth)
      .append(" more\n");
  }
}

压缩内容

将 package 进行压缩，截取首字母，例如 org.ylzl.framework.extension 压缩为 o.y.f.e。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
private static String formatStackElement(StackTraceElement element) {
  return reduceClassName(element.getClassName()) +
    "#" + element.getMethodName() +
    ":" + element.getLineNumber();
}

private static String reduceClassName(String className) {
  String[] parts = className.split("\\.");
  StringBuilder sb = new StringBuilder();
  for (int i = 0; i < parts.length - 1; i++) {
    sb.append(parts[i].charAt(0)).append('.');
  }
  sb.append(parts[parts.length - 1]);
  return sb.toString();
}

完整的代码如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
@Plugin(name = "StackTraceConverter", category = PatternConverter.CATEGORY)
@ConverterKeys({"st", "stacktrace"})
public class StackTraceConverter extends LogEventPatternConverter {

	private static final int DEFAULT_CAUSE_DEPTH = 3;

	private static final int DEFAULT_STACK_DEPTH = 5;

	/** Cause by 深度 */
	private final int causeDepth;

	/** 堆栈深度 */
	private final int stackDepth;

	public StackTraceConverter(int causeDepth, int stackDepth) {
		super("StackTrace", "stacktrace");
		this.causeDepth = causeDepth > 0 ? causeDepth : DEFAULT_CAUSE_DEPTH;
		this.stackDepth = stackDepth > 0 ? stackDepth : DEFAULT_STACK_DEPTH;
	}

	public static StackTraceConverter newInstance(String[] options) {
		int causeDepth = parseOption(options, 0, DEFAULT_CAUSE_DEPTH);
		int stackDepth = parseOption(options, 1, DEFAULT_STACK_DEPTH);
		return new StackTraceConverter(causeDepth, stackDepth);
	}

	private static int parseOption(String[] options, int index, int defaultValue) {
		try {
			if (options != null && options.length > index) {
				return Integer.parseInt(options[index]);
			}
		} catch (NumberFormatException ignored) {
		}
		return defaultValue;
	}

	@Override
	public void format(LogEvent event, StringBuilder output) {
		Throwable throwable = event.getThrown();
		if (throwable != null) {
			ForwardCounter counter = new ForwardCounter();
			output.append("\n");
			recursiveReversePrint(throwable, output, counter);
		}
	}

	private void recursiveReversePrint(Throwable throwable, StringBuilder output,
									   ForwardCounter counter) {
		if (throwable == null || counter.value >= causeDepth) {
			return;
		}

		if (throwable.getCause() != null) {
			recursiveReversePrint(throwable.getCause(), output, counter);
		}

		if (counter.value++ < causeDepth) {
			printSingleStack(throwable, output);
		}
	}

	private void printSingleStack(Throwable throwable, StringBuilder output) {
		output.append(reduceClassName(throwable.getClass().getName()))
			.append(": ")
			.append(throwable.getMessage())
			.append("\n");

		StackTraceElement[] stack = throwable.getStackTrace();
		for (int i = 0; i < Math.min(stackDepth, stack.length); i++) {
			output.append("\tat ")
				.append(formatStackElement(stack[i]))
				.append("\n");
		}

		if (stack.length > stackDepth) {
			output.append("\t... ").append(stack.length - stackDepth)
				.append(" more\n");
		}
	}

	private static String formatStackElement(StackTraceElement element) {
		return reduceClassName(element.getClassName()) +
			"#" + element.getMethodName() +
			":" + element.getLineNumber();
	}

	private static String reduceClassName(String className) {
		String[] parts = className.split("\\.");
		StringBuilder sb = new StringBuilder();
		for (int i = 0; i < parts.length - 1; i++) {
			sb.append(parts[i].charAt(0)).append('.');
		}
		sb.append(parts[parts.length - 1]);
		return sb.toString();
	}

	private static class ForwardCounter {
		private int value = 0;
	}
}

其中，@ConverterKeys({"st", "stacktrace"}) 这一行用于配置 log4j2 配置文件的占位符。例如，我们的 log4j2.yml 文件如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
Configuration:
  status: WARN
  monitorInterval: 30

  Properties:
    Property:
      - name: APP_NAME
        value: $${spring:spring.application.name:-eden-demo-cola}
      - name: PROFILES
        value: $${spring:spring.profiles.active}
      - name: LOG_PATH
        value: $${spring:logging.file.path:-/app/logs}
      - name: LOG_PATTERN
        value: "%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level [${PROFILES}] [%t] [%X{traceId}] %msg%n%throwable"

  Appenders:
    Console:
      name: STDOUT
      target: SYSTEM_OUT
      PatternLayout:
        pattern: ${LOG_PATTERN}
      Filters:
        ThresholdFilter:
          level: INFO
          onMatch: ACCEPT
          onMismatch: DENY
        BurstFilter:
          level: INFO
          rate: 1000
          maxBurst: 10000

  Loggers:
    Root:
      level: INFO
      includeLocation: false
      AppenderRef:
        - ref: STDOUT

我们只需要把 %throwable 替换为 %stacktrace{3,5}，表示对象的堆栈进行倒排，Cause 深度为 3，栈的深度为 5。

效果验证

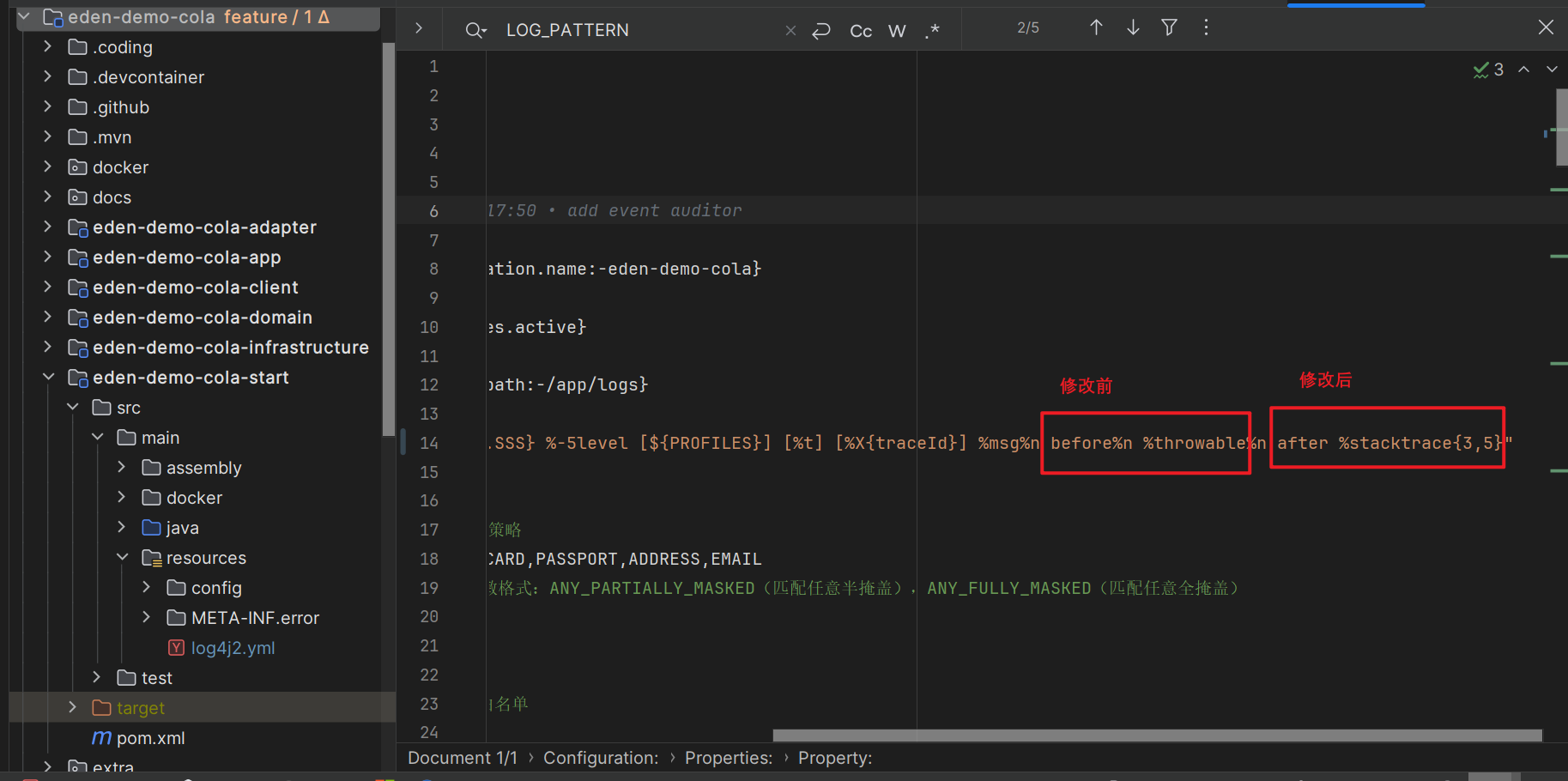

笔者在 log4j2.yaml 的 pattern 设置了 before%n%throwable%nafter%n%stacktrace{3,5}，将默认的 %throwable 和优化后的 %stacktrace{3,5} 进行对比，如下。

好了，发起一次不正常的请求测试日志输出情况。

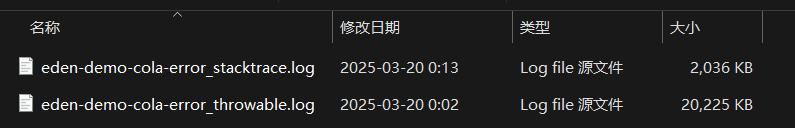

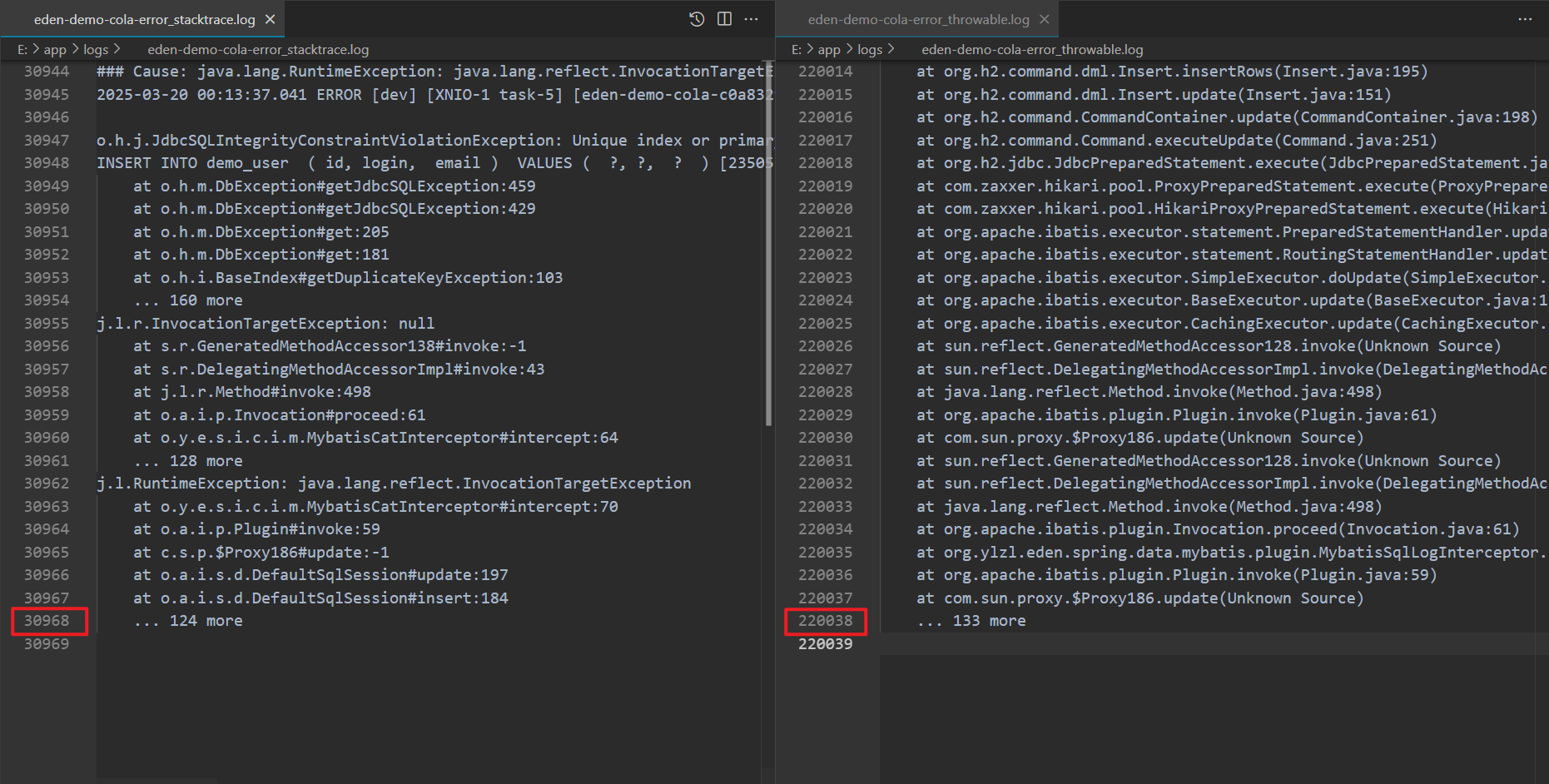

优化前的 %throwable 日志输出如下，累计 193 行。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
org.mybatis.spring.MyBatisSystemException: nested exception is org.apache.ibatis.exceptions.PersistenceException:
### Error updating database.  Cause: java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
### The error may involve org.ylzl.eden.demo.infrastructure.user.database.UserMapper.insert-Inline
### The error occurred while setting parameters
### SQL: INSERT INTO demo_user  ( id, login,  email )  VALUES (  ?, ?,  ?  )
### Cause: java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
	at org.mybatis.spring.MyBatisExceptionTranslator.translateExceptionIfPossible(MyBatisExceptionTranslator.java:97)
	at org.mybatis.spring.SqlSessionTemplate$SqlSessionInterceptor.invoke(SqlSessionTemplate.java:439)
	at com.sun.proxy.$Proxy148.insert(Unknown Source)
	at org.mybatis.spring.SqlSessionTemplate.insert(SqlSessionTemplate.java:272)
	at com.baomidou.mybatisplus.core.override.MybatisMapperMethod.execute(MybatisMapperMethod.java:59)
	at com.baomidou.mybatisplus.core.override.MybatisMapperProxy$PlainMethodInvoker.invoke(MybatisMapperProxy.java:152)
	at com.baomidou.mybatisplus.core.override.MybatisMapperProxy.invoke(MybatisMapperProxy.java:89)
	at com.sun.proxy.$Proxy149.insert(Unknown Source)
	at org.ylzl.eden.demo.infrastructure.user.gateway.UserGatewayImpl.save(UserGatewayImpl.java:49)
	at org.ylzl.eden.demo.infrastructure.user.gateway.UserGatewayImpl$$FastClassBySpringCGLIB$$d8b0b6f3.invoke(<generated>)
	at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
	at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:783)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
	at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
	at org.springframework.dao.support.PersistenceExceptionTranslationInterceptor.invoke(PersistenceExceptionTranslationInterceptor.java:137)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
	at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
	at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:698)
	at org.ylzl.eden.demo.infrastructure.user.gateway.UserGatewayImpl$$EnhancerBySpringCGLIB$$f587547c.save(<generated>)
	at org.ylzl.eden.demo.app.user.executor.command.UserAddCmdExe.execute(UserAddCmdExe.java:45)
	at org.ylzl.eden.demo.app.user.service.UserServiceImpl.createUser(UserServiceImpl.java:69)
	at org.ylzl.eden.demo.app.user.service.UserServiceImpl$$FastClassBySpringCGLIB$$f054739f.invoke(<generated>)
	at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
	at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:783)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
	at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
	at org.springframework.transaction.interceptor.TransactionInterceptor$1.proceedWithInvocation(TransactionInterceptor.java:123)
	at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:388)
	at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:119)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
	at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
	at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:698)
	at org.ylzl.eden.demo.app.user.service.UserServiceImpl$$EnhancerBySpringCGLIB$$ab23bab3.createUser(<generated>)
	at org.ylzl.eden.demo.adapter.user.web.UserController.createUser(UserController.java:58)
	at org.ylzl.eden.demo.adapter.user.web.UserController$$FastClassBySpringCGLIB$$3ab5b0e1.invoke(<generated>)
	at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
	at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:783)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
	at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
	at org.ylzl.eden.spring.framework.logging.access.aop.AccessLogInterceptor.invoke(AccessLogInterceptor.java:66)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
	at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
	at org.springframework.aop.interceptor.ExposeInvocationInterceptor.invoke(ExposeInvocationInterceptor.java:97)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
	at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
	at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:698)
	at org.ylzl.eden.demo.adapter.user.web.UserController$$EnhancerBySpringCGLIB$$64eb74d9.createUser(<generated>)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:205)
	at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:150)
	at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:117)
	at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:895)
	at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:808)
	at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87)
	at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1067)
	at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:963)
	at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)
	at org.springframework.web.servlet.FrameworkServlet.doPost(FrameworkServlet.java:909)
	at javax.servlet.http.HttpServlet.service(HttpServlet.java:517)
	at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883)
	at javax.servlet.http.HttpServlet.service(HttpServlet.java:584)
	at io.undertow.servlet.handlers.ServletHandler.handleRequest(ServletHandler.java:74)
	at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:129)
	at org.ylzl.eden.spring.framework.logging.bootstrap.filter.BootstrapLogHttpFilter.doFilter(BootstrapLogHttpFilter.java:70)
	at javax.servlet.http.HttpFilter.doFilter(HttpFilter.java:97)
	at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
	at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
	at org.ylzl.eden.spring.integration.cat.integration.web.HttpCatFilter.logTransaction(HttpCatFilter.java:167)
	at org.ylzl.eden.spring.integration.cat.integration.web.HttpCatFilter.doFilter(HttpCatFilter.java:143)
	at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
	at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
	at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:100)
	at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
	at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
	at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
	at org.springframework.web.filter.FormContentFilter.doFilterInternal(FormContentFilter.java:93)
	at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
	at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
	at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
	at org.springframework.boot.actuate.metrics.web.servlet.WebMvcMetricsFilter.doFilterInternal(WebMvcMetricsFilter.java:97)
	at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
	at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
	at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
	at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201)
	at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
	at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
	at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
	at io.undertow.servlet.handlers.FilterHandler.handleRequest(FilterHandler.java:84)
	at io.undertow.servlet.handlers.security.ServletSecurityRoleHandler.handleRequest(ServletSecurityRoleHandler.java:62)
	at io.undertow.servlet.handlers.ServletChain$1.handleRequest(ServletChain.java:68)
	at io.undertow.servlet.handlers.ServletDispatchingHandler.handleRequest(ServletDispatchingHandler.java:36)
	at io.undertow.servlet.handlers.RedirectDirHandler.handleRequest(RedirectDirHandler.java:68)
	at io.undertow.servlet.handlers.security.SSLInformationAssociationHandler.handleRequest(SSLInformationAssociationHandler.java:117)
	at io.undertow.servlet.handlers.security.ServletAuthenticationCallHandler.handleRequest(ServletAuthenticationCallHandler.java:57)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at io.undertow.security.handlers.AbstractConfidentialityHandler.handleRequest(AbstractConfidentialityHandler.java:46)
	at io.undertow.servlet.handlers.security.ServletConfidentialityConstraintHandler.handleRequest(ServletConfidentialityConstraintHandler.java:64)
	at io.undertow.security.handlers.AuthenticationMechanismsHandler.handleRequest(AuthenticationMechanismsHandler.java:60)
	at io.undertow.servlet.handlers.security.CachedAuthenticatedSessionHandler.handleRequest(CachedAuthenticatedSessionHandler.java:77)
	at io.undertow.security.handlers.AbstractSecurityContextAssociationHandler.handleRequest(AbstractSecurityContextAssociationHandler.java:43)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at io.undertow.servlet.handlers.SendErrorPageHandler.handleRequest(SendErrorPageHandler.java:52)
	at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
	at io.undertow.servlet.handlers.ServletInitialHandler.handleFirstRequest(ServletInitialHandler.java:280)
	at io.undertow.servlet.handlers.ServletInitialHandler.access$100(ServletInitialHandler.java:79)
	at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:134)
	at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:131)
	at io.undertow.servlet.core.ServletRequestContextThreadSetupAction$1.call(ServletRequestContextThreadSetupAction.java:48)
	at io.undertow.servlet.core.ContextClassLoaderSetupAction$1.call(ContextClassLoaderSetupAction.java:43)
	at io.undertow.servlet.handlers.ServletInitialHandler.dispatchRequest(ServletInitialHandler.java:260)
	at io.undertow.servlet.handlers.ServletInitialHandler.access$000(ServletInitialHandler.java:79)
	at io.undertow.servlet.handlers.ServletInitialHandler$1.handleRequest(ServletInitialHandler.java:100)
	at io.undertow.server.Connectors.executeRootHandler(Connectors.java:387)
	at io.undertow.server.HttpServerExchange$1.run(HttpServerExchange.java:852)
	at org.jboss.threads.ContextClassLoaderSavingRunnable.run(ContextClassLoaderSavingRunnable.java:35)
	at org.jboss.threads.EnhancedQueueExecutor.safeRun(EnhancedQueueExecutor.java:2019)
	at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.doRunTask(EnhancedQueueExecutor.java:1558)
	at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.run(EnhancedQueueExecutor.java:1449)
	at org.xnio.XnioWorker$WorkerThreadFactory$1$1.run(XnioWorker.java:1280)
	at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.ibatis.exceptions.PersistenceException:
### Error updating database.  Cause: java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
### The error may involve org.ylzl.eden.demo.infrastructure.user.database.UserMapper.insert-Inline
### The error occurred while setting parameters
### SQL: INSERT INTO demo_user  ( id, login,  email )  VALUES (  ?, ?,  ?  )
### Cause: java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
	at org.apache.ibatis.exceptions.ExceptionFactory.wrapException(ExceptionFactory.java:30)
	at org.apache.ibatis.session.defaults.DefaultSqlSession.update(DefaultSqlSession.java:199)
	at org.apache.ibatis.session.defaults.DefaultSqlSession.insert(DefaultSqlSession.java:184)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.mybatis.spring.SqlSessionTemplate$SqlSessionInterceptor.invoke(SqlSessionTemplate.java:425)
	... 121 more
Caused by: java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
	at org.ylzl.eden.spring.integration.cat.integration.mybatis.MybatisCatInterceptor.intercept(MybatisCatInterceptor.java:70)
	at org.apache.ibatis.plugin.Plugin.invoke(Plugin.java:59)
	at com.sun.proxy.$Proxy185.update(Unknown Source)
	at org.apache.ibatis.session.defaults.DefaultSqlSession.update(DefaultSqlSession.java:197)
	... 127 more
Caused by: java.lang.reflect.InvocationTargetException
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.apache.ibatis.plugin.Invocation.proceed(Invocation.java:61)
	at org.ylzl.eden.spring.integration.cat.integration.mybatis.MybatisCatInterceptor.intercept(MybatisCatInterceptor.java:64)
	... 130 more
Caused by: org.h2.jdbc.JdbcSQLIntegrityConstraintViolationException: Unique index or primary key violation: "PRIMARY KEY ON PUBLIC.DEMO_USER(ID) [1, 'admin', '{bcrypt}$2a$10$gSAhZrxMllrbgj/kkK9UceBPpChGWJA7SYIb1Mqo.n5aNLq1/oRrC', '1813******@qq.com|FCBD1399F72052DCB729247191079CFC', TRUE, FALSE, 'zh-cn', NULL, NULL, NULL, 'system', TIMESTAMP '2025-03-19 17:07:31.328', 'system', NULL]"; SQL statement:
INSERT INTO demo_user  ( id, login,  email )  VALUES (  ?, ?,  ?  ) [23505-200]
	at org.h2.message.DbException.getJdbcSQLException(DbException.java:459)
	at org.h2.message.DbException.getJdbcSQLException(DbException.java:429)
	at org.h2.message.DbException.get(DbException.java:205)
	at org.h2.message.DbException.get(DbException.java:181)
	at org.h2.mvstore.db.MVPrimaryIndex.add(MVPrimaryIndex.java:127)
	at org.h2.mvstore.db.MVTable.addRow(MVTable.java:531)
	at org.h2.command.dml.Insert.insertRows(Insert.java:195)
	at org.h2.command.dml.Insert.update(Insert.java:151)
	at org.h2.command.CommandContainer.update(CommandContainer.java:198)
	at org.h2.command.Command.executeUpdate(Command.java:251)
	at org.h2.jdbc.JdbcPreparedStatement.execute(JdbcPreparedStatement.java:240)
	at com.zaxxer.hikari.pool.ProxyPreparedStatement.execute(ProxyPreparedStatement.java:44)
	at com.zaxxer.hikari.pool.HikariProxyPreparedStatement.execute(HikariProxyPreparedStatement.java)
	at org.apache.ibatis.executor.statement.PreparedStatementHandler.update(PreparedStatementHandler.java:48)
	at org.apache.ibatis.executor.statement.RoutingStatementHandler.update(RoutingStatementHandler.java:75)
	at org.apache.ibatis.executor.SimpleExecutor.doUpdate(SimpleExecutor.java:50)
	at org.apache.ibatis.executor.BaseExecutor.update(BaseExecutor.java:117)
	at org.apache.ibatis.executor.CachingExecutor.update(CachingExecutor.java:76)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.apache.ibatis.plugin.Plugin.invoke(Plugin.java:61)
	at com.sun.proxy.$Proxy185.update(Unknown Source)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.apache.ibatis.plugin.Invocation.proceed(Invocation.java:61)
	at org.ylzl.eden.spring.data.mybatis.plugin.MybatisSqlLogInterceptor.intercept(MybatisSqlLogInterceptor.java:64)
	at org.apache.ibatis.plugin.Plugin.invoke(Plugin.java:59)
	at com.sun.proxy.$Proxy185.update(Unknown Source)
	... 136 more

优化后的 %%stacktrace{3,5} 日志输出如下，累计 22 行。基于倒排的优势，在前面几行，我们马上就能定位到 Cause by 原因了。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
o.h.j.JdbcSQLIntegrityConstraintViolationException: Unique index or primary key violation: "PRIMARY KEY ON PUBLIC.DEMO_USER(ID) [1, 'admin', '{bcrypt}$2a$10$gSAhZrxMllrbgj/kkK9UceBPpChGWJA7SYIb1Mqo.n5aNLq1/oRrC', '1813******@qq.com|FCBD1399F72052DCB729247191079CFC', TRUE, FALSE, 'zh-cn', NULL, NULL, NULL, 'system', TIMESTAMP '2025-03-19 17:07:31.328', 'system', NULL]"; SQL statement:
INSERT INTO demo_user  ( id, login,  email )  VALUES (  ?, ?,  ?  ) [23505-200]
	at o.h.m.DbException#getJdbcSQLException:459
	at o.h.m.DbException#getJdbcSQLException:429
	at o.h.m.DbException#get:205
	at o.h.m.DbException#get:181
	at o.h.m.d.MVPrimaryIndex#add:127
	... 163 more
j.l.r.InvocationTargetException: null
	at s.r.NativeMethodAccessorImpl#invoke0:-2
	at s.r.NativeMethodAccessorImpl#invoke:62
	at s.r.DelegatingMethodAccessorImpl#invoke:43
	at j.l.r.Method#invoke:498
	at o.a.i.p.Invocation#proceed:61
	... 131 more
j.l.RuntimeException: java.lang.reflect.InvocationTargetException
	at o.y.e.s.i.c.i.m.MybatisCatInterceptor#intercept:70
	at o.a.i.p.Plugin#invoke:59
	at c.s.p.$Proxy185#update:-1
	at o.a.i.s.d.DefaultSqlSession#update:197
	at o.a.i.s.d.DefaultSqlSession#insert:184
	... 126 more

现在发起 1000 次请求，可以看到优化前产生了 22W 行（下图右侧），优化后减少到 3W 行（下图左侧）。

对应的体积变化，优化前占用 20MB，优化后只占用 2MB，缩减了 10 倍。

产出

本次改动没有任何代码侵入，研发团队只需要在 log4j2.yml 微调 pattern，就可以将日志的占用空间缩减 10 倍，并且，在排查问题只需要关注第一段堆栈的信息，就能定位到业务代码问题。

本文涉及的代码完全开源，感兴趣的伙伴可以查阅 eden-spring-framework 的 StackTraceConverter 类。
